| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

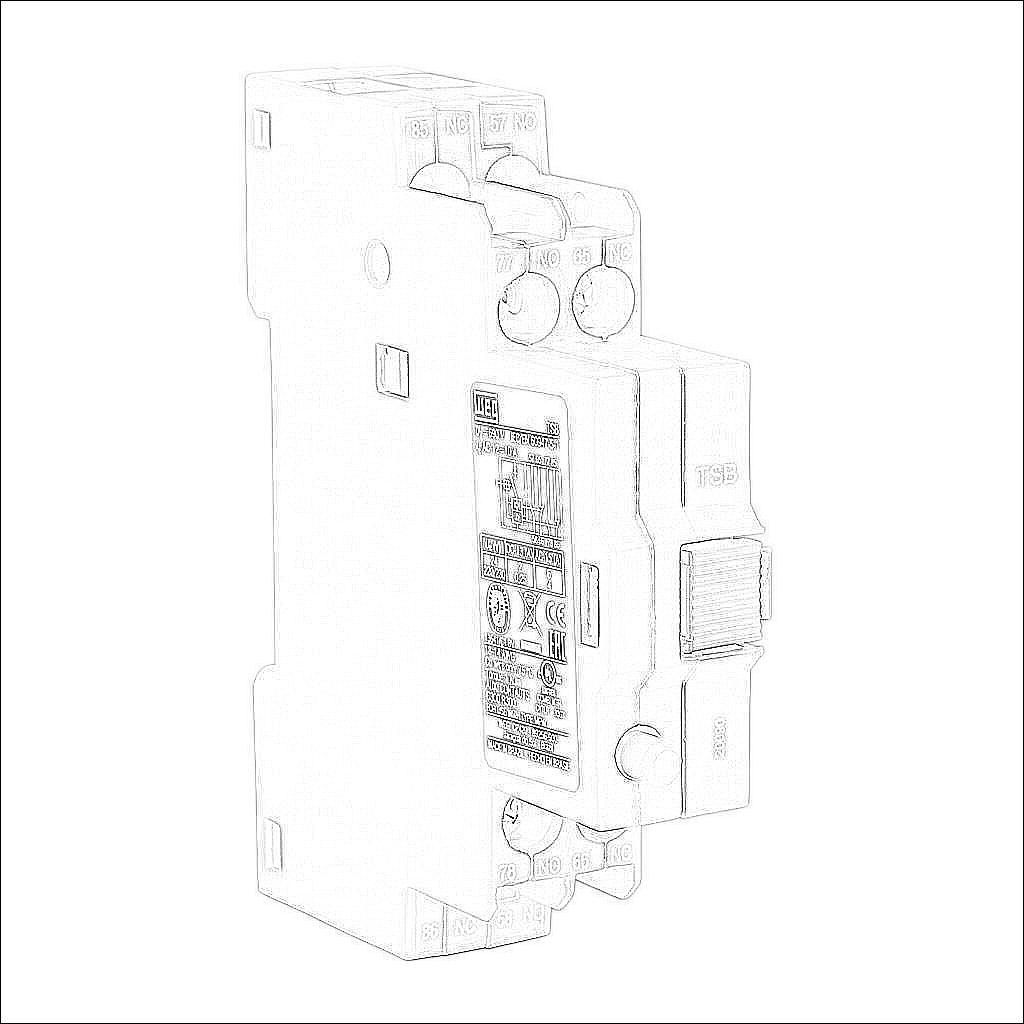

| Item | Short circuit alarm contact | |
| Field Installable | Yes | |
| Mounting | Left side | |
| Contact Type | (2) N.O./(2) N.C. | |
| Amperage Rating | 6A @ 120 VAC/0.55A @ 120 VDC | |
| Connection | Screw terminal | |
| For Use With | MPW40 and MPW80 series manual motor protectors | |
| Includes | Includes one set of contacts (N.O./N.C.) for trip overload signaling and other set of contacts (N.O./N.C.) for short-circuit trip signaling | |
| Additional Information | The power to the MPW protector can be turned ON after pressing the blue reset button on the front. Required when using a MPW in a UL Type E application | |
