| Technical Data | ||
|---|---|---|
| Brand | Micro Detectors | |

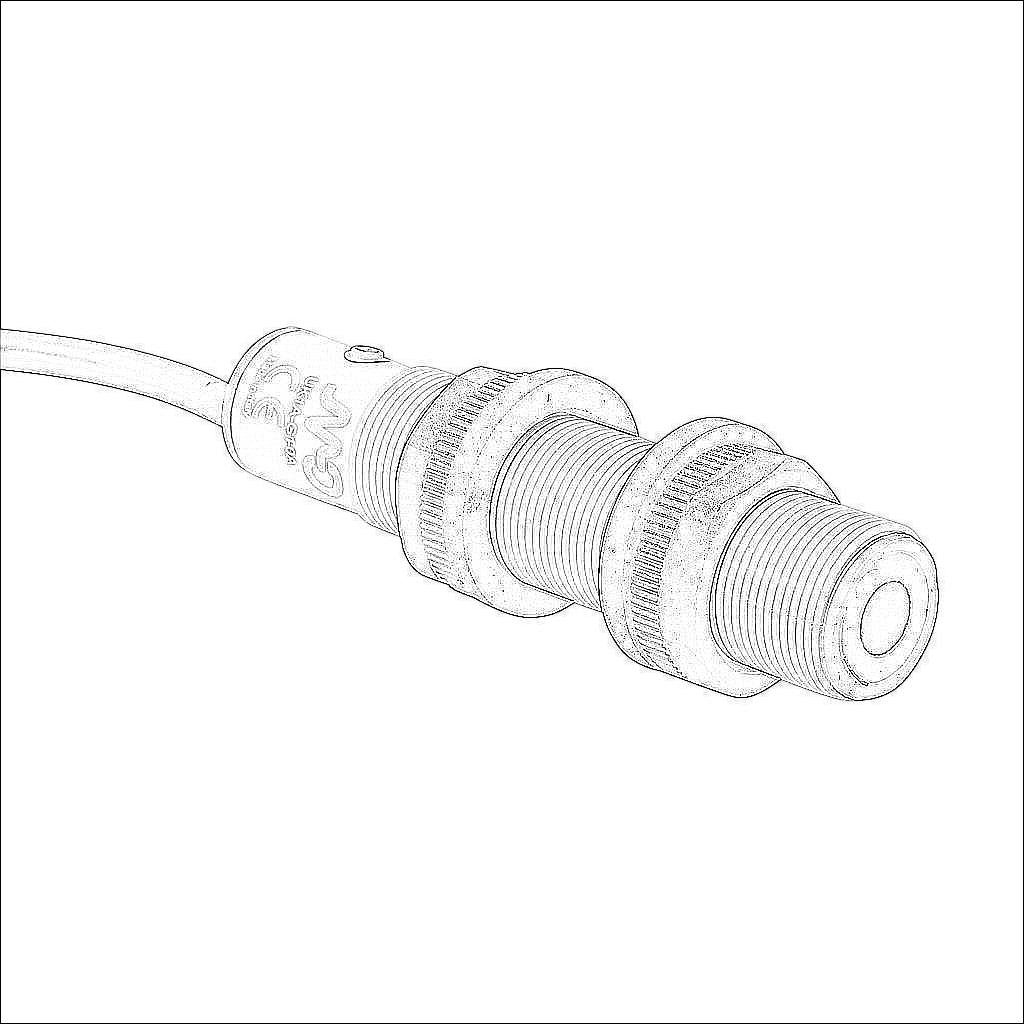

| Item | Proximity sensor | |
| Sensor Type | Ultrasonic | |
| Shape | Tubular | |
| Housing Size | 18mm diameter x 83.6mm body | |
| Housing Material | Polybutylene terephthalate | |
| Barrel Type | Threaded | |
| Sensing Method | Diffuse | |
| Adjustable | Yes | |
| Number of Wires | 4 | |
| Analog Output | 0-10 VDC | |
| Sensing Distance | 50-400mm | |
| IO-Link Compatible | No | |
| Operating Voltage | 10-30 VDC | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Conductor Size | 22 AWG | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PVC | |
| Includes | Mounting hardware | |
