| Technical Data | ||
|---|---|---|
| Brand | Micro Detectors | |

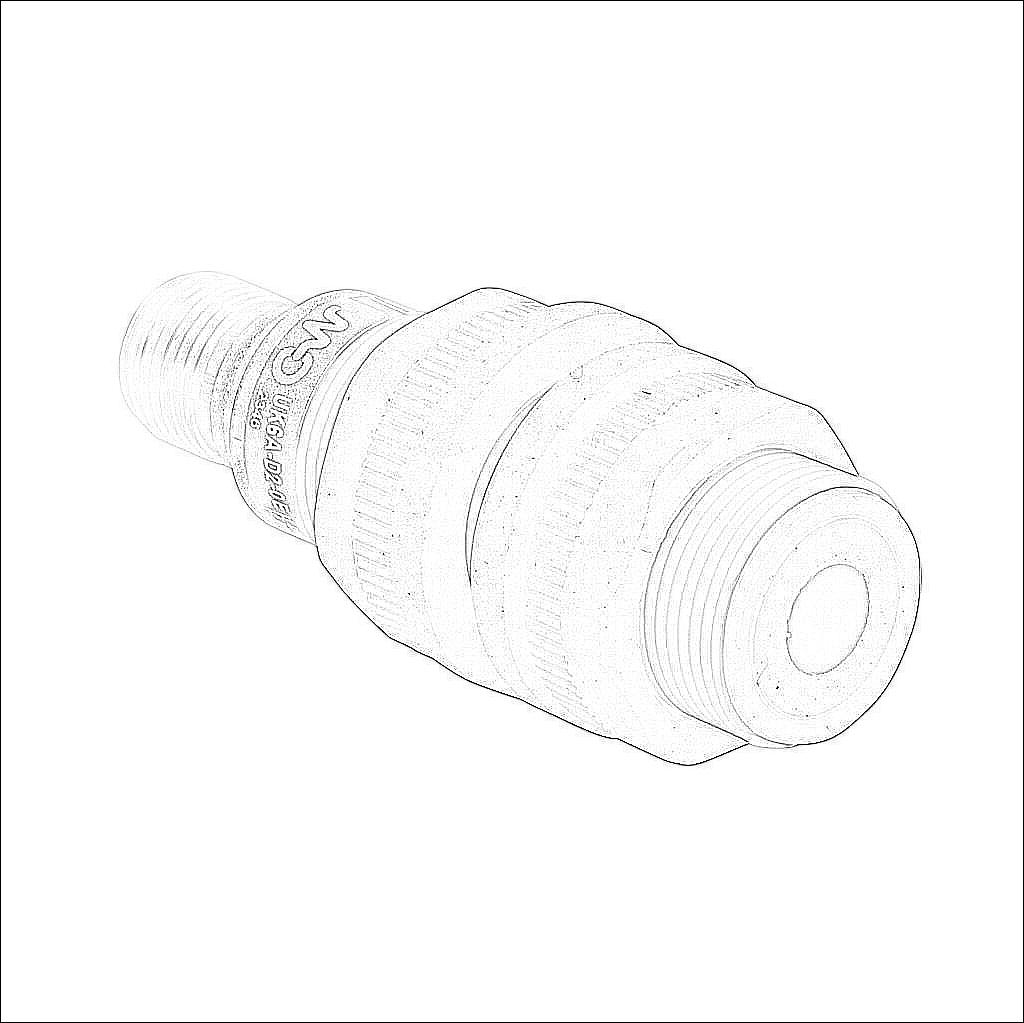

| Item | Proximity sensor | |
| Sensor Type | Ultrasonic | |
| Application | Standard duty and analog output | |
| Shape | Tubular | |
| Housing Size | 18mm diameter x 60.4mm body | |
| Housing Material | Polybutylene terephthalate | |
| Barrel Type | Threaded | |
| Sensing Method | Diffuse | |
| Adjustable | Yes | |
| Number of Wires | 4 | |
| Analog Output | 4-20 mA | |
| Sensing Distance | 40-300mm | |
| Switching Frequency | 12 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -20 to 60 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 4-pin M12 quick-disconnect | |
| IO-Link Compatible | No | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
