| Technical Data | ||
|---|---|---|
| Brand | Micro Detectors | |

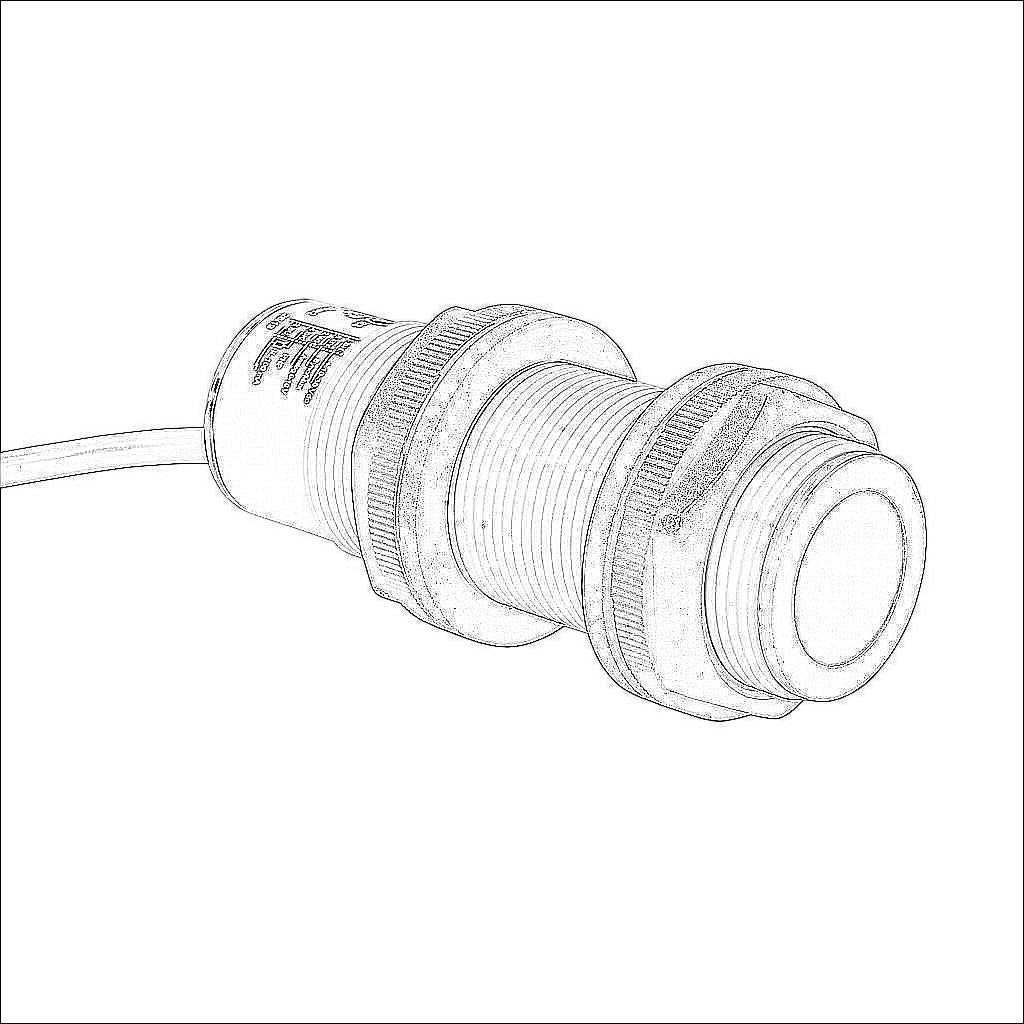

| Item | Proximity sensor | |
| Sensor Type | Ultrasonic | |
| Shape | Tubular | |
| Housing Size | 30mm diameter x 88.8mm body | |
| Housing Material | Polybutylene terephthalate | |
| Barrel Type | Threaded | |
| Sensing Method | Diffuse | |
| Adjustable | Yes | |
| Number of Wires | 5 | |
| Switching Output | PNP | |
| Analog Output | 0-10 VDC | |
| Operation Mode | N.O./N.C. selectable output | |
| Sensing Distance | 250-3500mm | |
| IO-Link Compatible | No | |
| Switching Frequency | 1 Hz | |
| Operating Voltage | 10-30 VDC | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Conductor Size | 22 AWG | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PVC | |
| Includes | Mounting hardware | |
