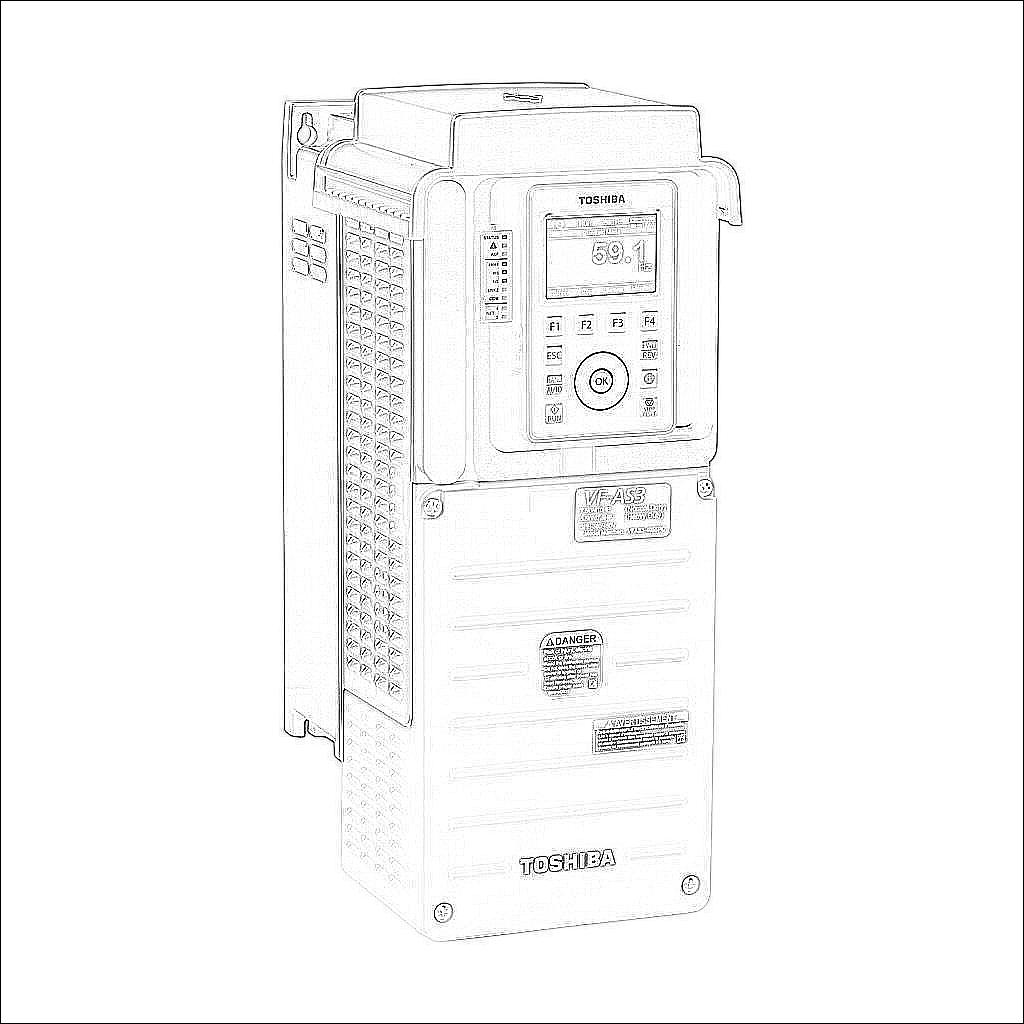

| Technical Data | ||
|---|---|---|
| Brand | Toshiba | |
| Item | Drive | |
| Controller Type | High-performance | |
| Series | AS3 | |
| Voltage Type | AC | |
| Nominal Drive Input Voltage | 460 VAC | |
| Nominal Drive Output Voltage | 460 VAC | |
| Number of Input Phases | 3 | |
| Number of Output Phases | 3 | |
| Horsepower By Input Phase | 7-1/2hp with 3-phase input | |
| Amperage Rating | 12.7A | |
| Variable Torque Amperage Rating | 16.5A | |
| Control Mode | V/Hz, FOC, encoder or torque | |
| Integrated EMI Filter | Yes | |
| Safe Torque Off (STO) | Yes | |
| Temperature Rating | -15 to 50 deg C | |
| Enclosure Type | UL Type 1 | |
| IP Rating | IP20 | |
| Mounting | Panel or wall | |
| Frame Size | A2 | |
| Dynamic Braking | Integrated dynamic braking | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| Input Signal | 4-20 mA, voltage, potentiometer or pulse train input | |
| Output Type | PWM output | |
| Reverse Capability | Built-in | |
| Internally Bypassed | No | |
| Carrier Frequency Range | 1-16 kHz | |
| Output Frequency Range | 0.1-590 Hz | |
| Number of Analog Input Channels | 3 | |
| Number Of Input Channels | 3 | |
| Analog Input Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 3 | |
| Input Resolution | 11-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | +/- 10 VDC | |
| Number of Analog Output Channels | 2 | |
| Number Of Output Channels | 2 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 2 | |
| Output Resolution | 10-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Input Points | 8 | |
| Nominal Discrete Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 2 | |
| Number of Points per Discrete Input Common | 4 | |
| Number of Discrete Output Points | 3 | |
| Nominal Discrete Output Voltage | 250 VAC and 30 VDC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (1) Form C (SPDT) relay, (2) Form A (SPST) relays | |
| Number of Isolated Discrete Output Commons | 3 | |
| Number of Points per Discrete Output Common | 1 | |
| Load Current | 2A/point relay | |
| Fuse Type | User-supplied external fuse | |
| Programming Language | User sequence | |
| Connector Type | Screw terminals | |
| For Use With | 3-phase induction and permanent magnet AC motors | |
| Includes | DC reactor (built-in), EMC filter (built-in) and conduit box | |
| Additional Information | Optional EtherCAT, encoder and I/O cards available. | |
| Dangerous Goods |
| |
