| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

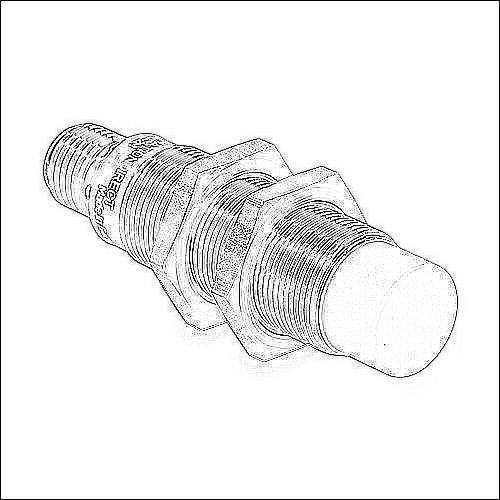

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Food and beverage and AC powered | |
| Shape | Tubular | |
| Housing Size | 18mm diameter x 70mm body | |
| Housing Material | 316L stainless steel | |
| Barrel Type | Threaded | |
| Sensing Method | Standard sensing | |
| Adjustable | No | |
| Number of Wires | 2 | |
| Operation Mode | N.O. output | |
| Sensing Distance | 12mm | |
| Mounting Type | Non-flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 25 Hz (AC)/300 Hz (DC) | |
| Operating Voltage | 20-140 VAC/VDC | |
| Operating Temperature | 0 to 100C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP68 IP69K | |
| Connection | 1/2in - 20UNF thread | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately. For harsh duty / food and beverage applications | |
