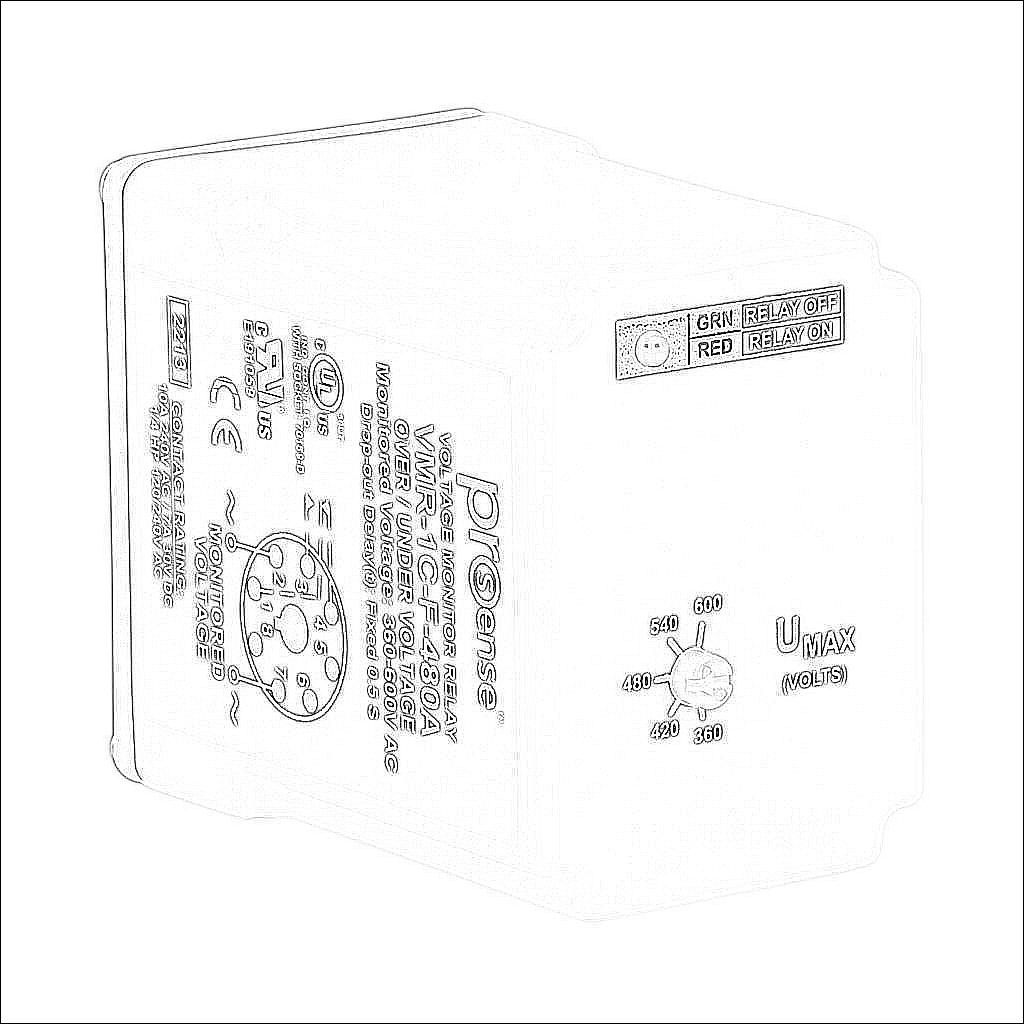

VMR-1C-F-480A

VMR-1C-F-480A

ProSense voltage monitor relay, 1-phase, socket mount, 360-600 VAC input voltage, SPDT, 10A contact rating, 8-pin, LED indicator(s), overvoltage, undervoltage and fixed drop-out protection.

$107.50
/
Technical Data
BrandProSense
ItemRelay
Relay TypeVoltage monitor
Number of Phases1
MountingSocket
Relay Housing TypeFinger-safe
Input Voltage360-600 VAC
Relay ConfigurationSPDT
Connector Type8-pin
Contact Rating10A
IndicatorLED
Protection Type(s)
  • overvoltage
  • undervoltage
  • fixed drop-out
Additional InformationRelay becomes UL listed when used with Macromatic 70169-D relay socket
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
