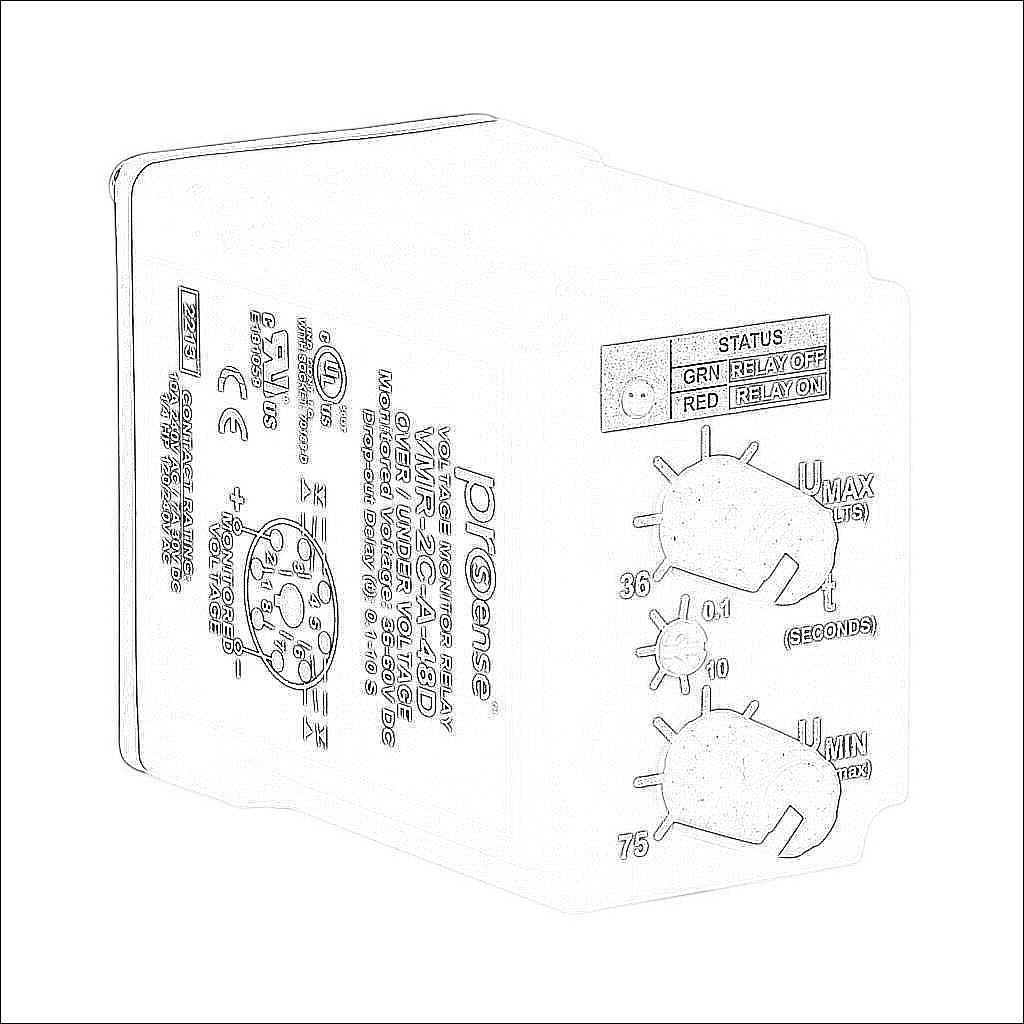

VMR-2C-A-48D

VMR-2C-A-48D

ProSense voltage monitor relay, 1-phase, socket mount, 36-60 VDC input voltage, DPDT, 10A contact rating, 8-pin, LED indicator(s), overvoltage, undervoltage and adjustable drop-out protection.

$92.50
/
Technical Data
BrandProSense
ItemRelay
Relay TypeVoltage monitor
Number of Phases1
MountingSocket
Relay Housing TypeFinger-safe
Input Voltage36-60 VDC
Relay ConfigurationDPDT
Connector Type8-pin
Contact Rating10A
IndicatorLED
Protection Type(s)
  • overvoltage
  • undervoltage
  • adjustable drop-out
Additional InformationRelay becomes UL listed when used with Macromatic 70169-D relay socket
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
