| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

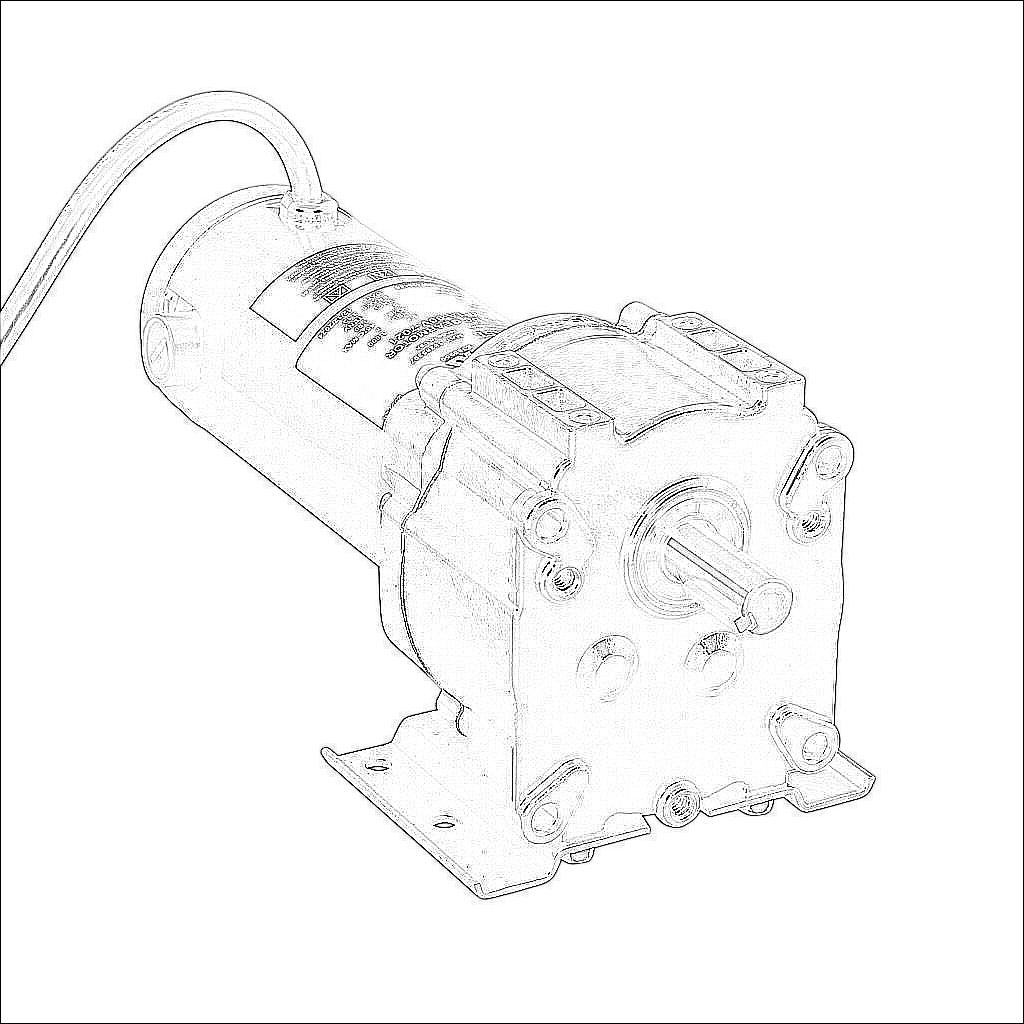

| Item | Motor | |
| Series | VP1 | |
| Motor Type | Gear | |
| Gear Motor Orientation | Parallel | |
| Voltage Type | DC | |
| Horsepower Rating | 1/8hp | |
| Voltage Rating | 90 VDC | |
| Nameplate RPM | 21rpm | |
| Full Load Torque | 280 lb-in | |
| Full Load Amperage | 1.3 | |
| Gear Ratio | 88:1 | |
| Shaft Diameter | 5/8in | |
| IP Rating | IP40 | |
| Insulation Class | Class F | |
| Electrically Reversible | Yes | |
| Enclosure Type | TENV | |
| Mounting | Face/foot | |
