| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

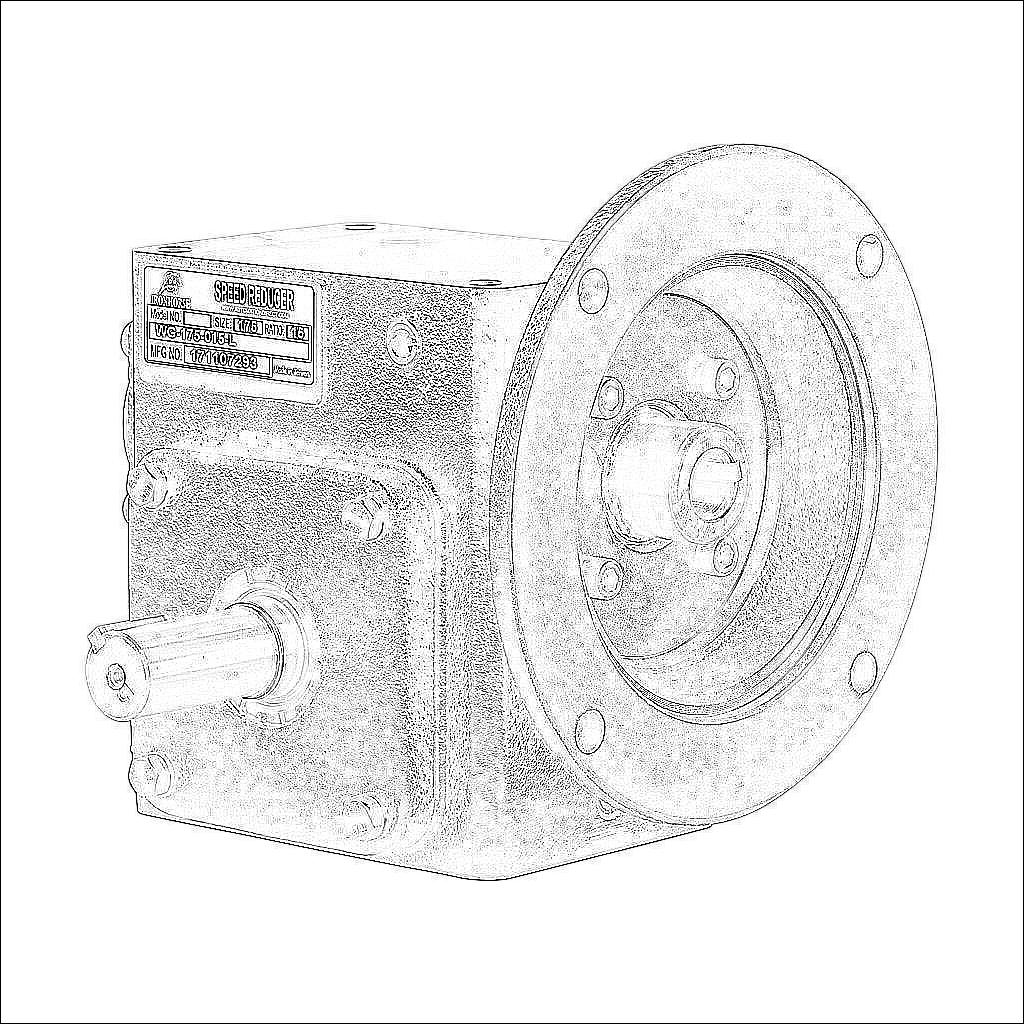

| Item | Gearbox | |
| Application | General purpose | |
| Duty Rating | Heavy-duty | |
| Gearbox Type | Worm | |
| Gear Ratio | 15:1 | |
| Speed Rating | 1750rpm input / 117rpm output | |
| Input Configuration | NEMA 56C | |
| Input Power Rating | Nominal 1.24hp at 1.0 SF | |
| Output Configuration | Left hand | |
| Gearbox Output Shaft Diameter | 0.875in | |
| Mechanical Output Torque | 554 lb-in | |
| Thermal Output Torque | 506 lb-in | |
| Center Distance | 1-3/4in | |
| Housing Material | Cast iron | |
| Mounting | Tapped-base | |
| Finish | Anti-corrosion primer and paint | |
| Lubrication Type | Pre-filled with synthetic lube | |
| Oil Seal Type | Double-lip | |
