| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

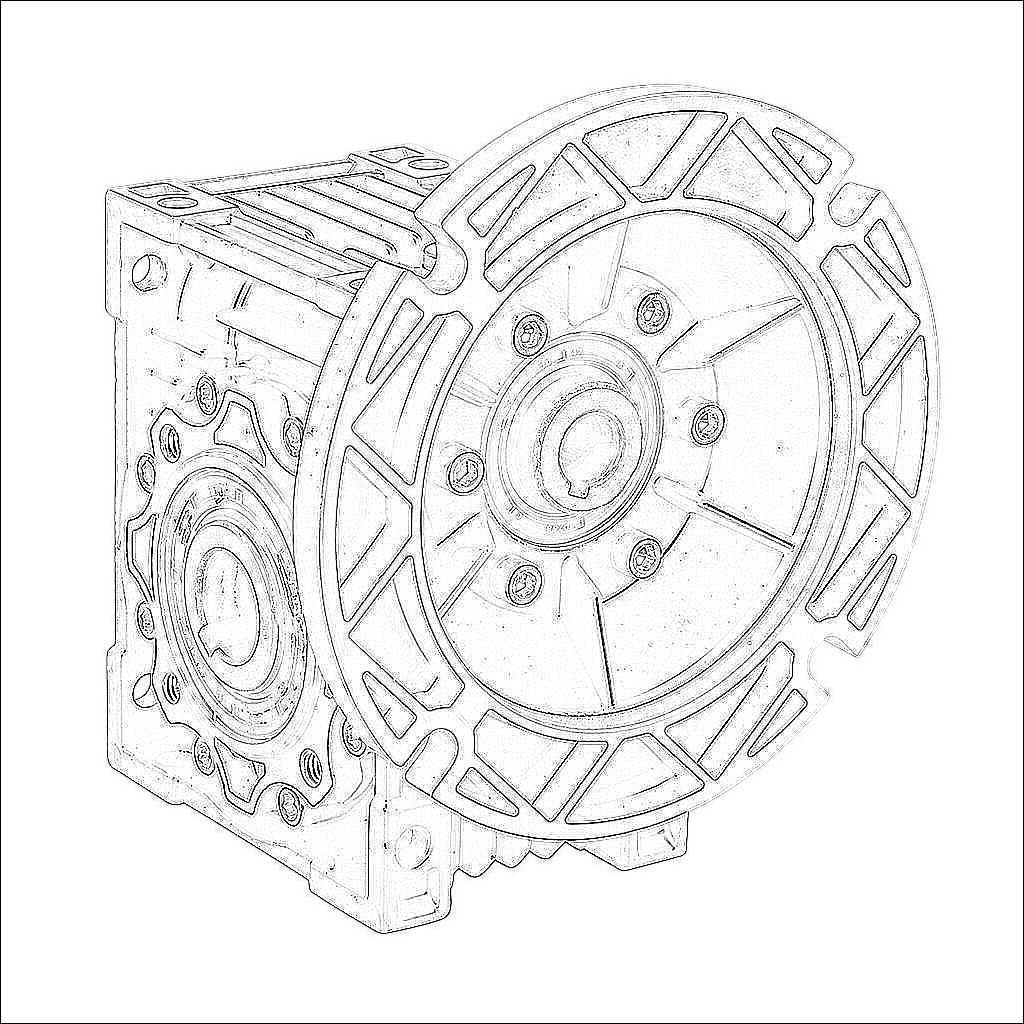

| Item | Gearbox | |
| Application | General purpose | |
| Duty Rating | Medium-duty | |
| Gearbox Type | Worm | |
| Gear Ratio | 20:1 | |
| Speed Rating | 1750rpm input / 88rpm output | |
| Input Configuration | NEMA 56C | |
| Input Power Rating | Nominal 1.14hp at 1.0 SF | |
| Output Configuration | Hollow | |
| Gearbox Output Shaft Diameter | 1in | |
| Mechanical Output Torque | 656 lb-in | |
| Thermal Output Torque | 656 lb-in | |
| Center Distance | 50mm | |
| Housing Material | Cast aluminum | |
| Mounting | Top, bottom and back | |
| Finish | Powder coat | |
| Lubrication Type | Pre-filled with synthetic lube | |
| Oil Seal Type | Double-lip | |
| Includes | Motor mounting hardware | |
