| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

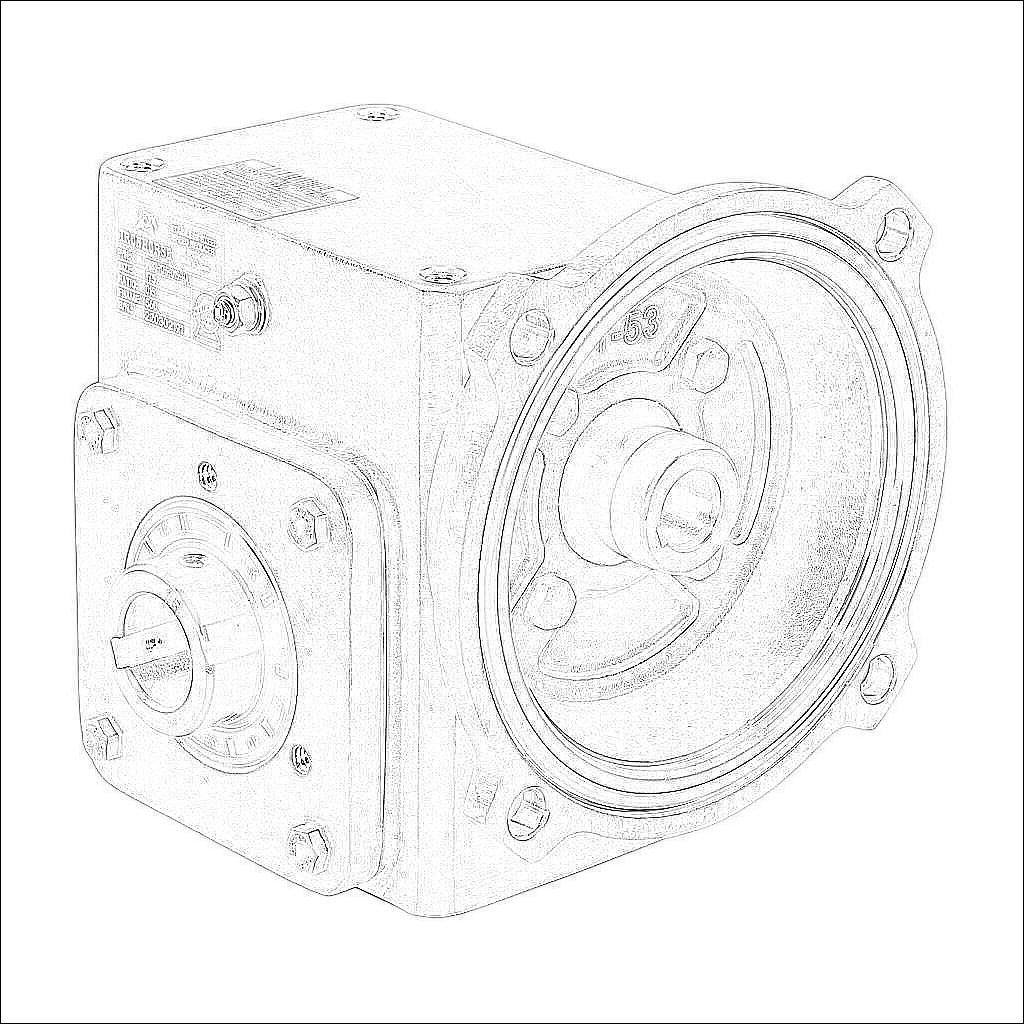

| Item | Gearbox | |
| Application | Washdown duty and food and beverage | |
| Duty Rating | Heavy duty | |
| Gearbox Type | Worm | |
| Gear Ratio | 15:1 | |
| Speed Rating | 1750rpm input / 116rpm output | |
| Input Configuration | NEMA 56C | |
| Input Power Rating | Nominal 1.09hp at 1.0 SF | |
| Output Configuration | Hollow | |
| Gearbox Output Shaft Diameter | 1in | |
| Mechanical Output Torque | 506 lb-in | |
| Thermal Output Torque | 448 lb-in | |
| Center Distance | 1-3/4in | |
| Housing Material | 304 stainless steel | |
| Mounting | Top and bottom | |
| Finish | Smooth-grained | |
| Lubrication Type | Pre-filled with Mobil Cibus 460 H1 food grade lubricant | |
| Oil Seal Type | Double-lip | |
