| Technical Data | ||
|---|---|---|

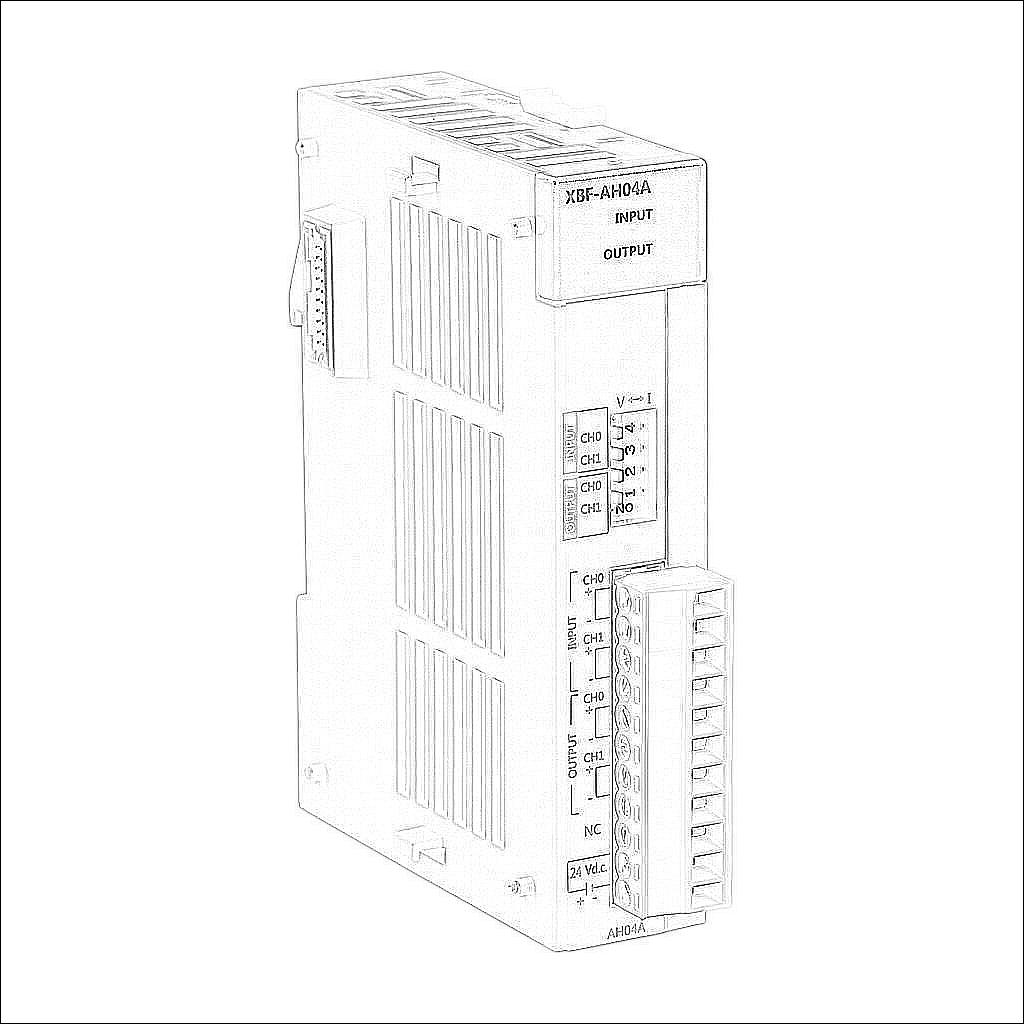

| Brand | LS Electric XGB | |
| Item | Combo module | |
| I/O Module Type | Analog | |
| Number of Input Channels | 2 | |
| Input Signal Type(s) | Current/voltage | |
| Number of Non-Isolated Input Commons | 2 | |
| Input Resolution | 12-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC, 1-5 VDC and 0-10 VDC | |
| Number of Output Channels | 2 | |
| Output Signal Type | Current/voltage | |
| Number of Non-Isolated Output Commons | 2 | |
| Output Resolution | 12-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-5 VDC, 1-5 VDC and 0-10 VDC | |
| External Power Requirement | 24 VDC | |
| Includes | Removable terminal block | |
| Programming Software | XG5000 programming software v4.7 or later | |
