| Technical Data | ||
|---|---|---|

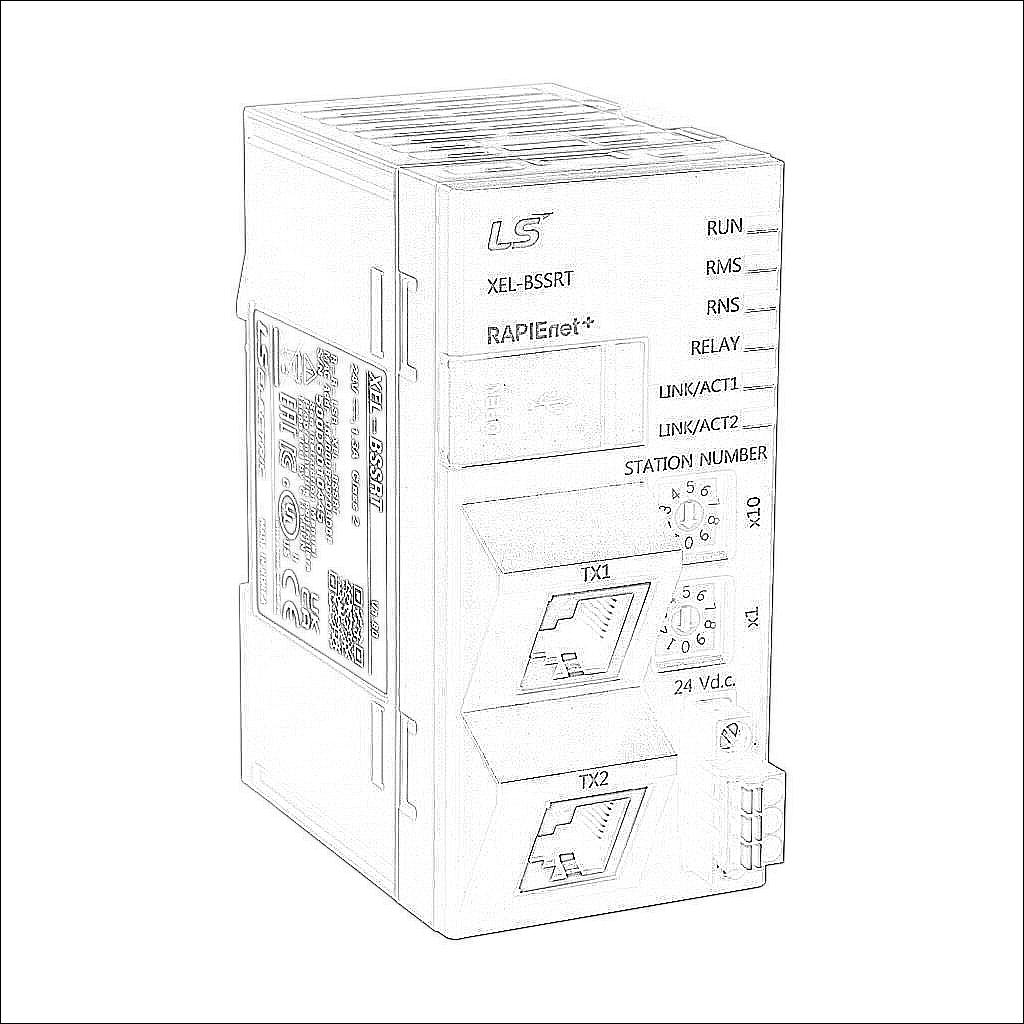

| Brand | LS Electric XGB | |
| Item | Bus coupler | |
| Voltage Rating | 24 VDC | |
| Number of Ports | 2 | |
| Communication Port and Connection Type(s) | (2) Ethernet (RJ45) and (1) USB B port(s) | |
| Port Protocol(s) | EtherNet/IP Server and Modbus TCP Slave | |
| Port Speed(s) | 100/1000 Mbps | |
| Number of Discrete Inputs/Outputs | 256 inputs/256 outputs | |
| Number of Analog Inputs/Outputs | 64 inputs/32 outputs | |
| Maximum Number of Data Bytes | 512 input bytes/512 output bytes | |
| For Use With | LS Electric XGB series I/O modules | |
| Programming Software | XG5000 programming software v4.7 or later | |
