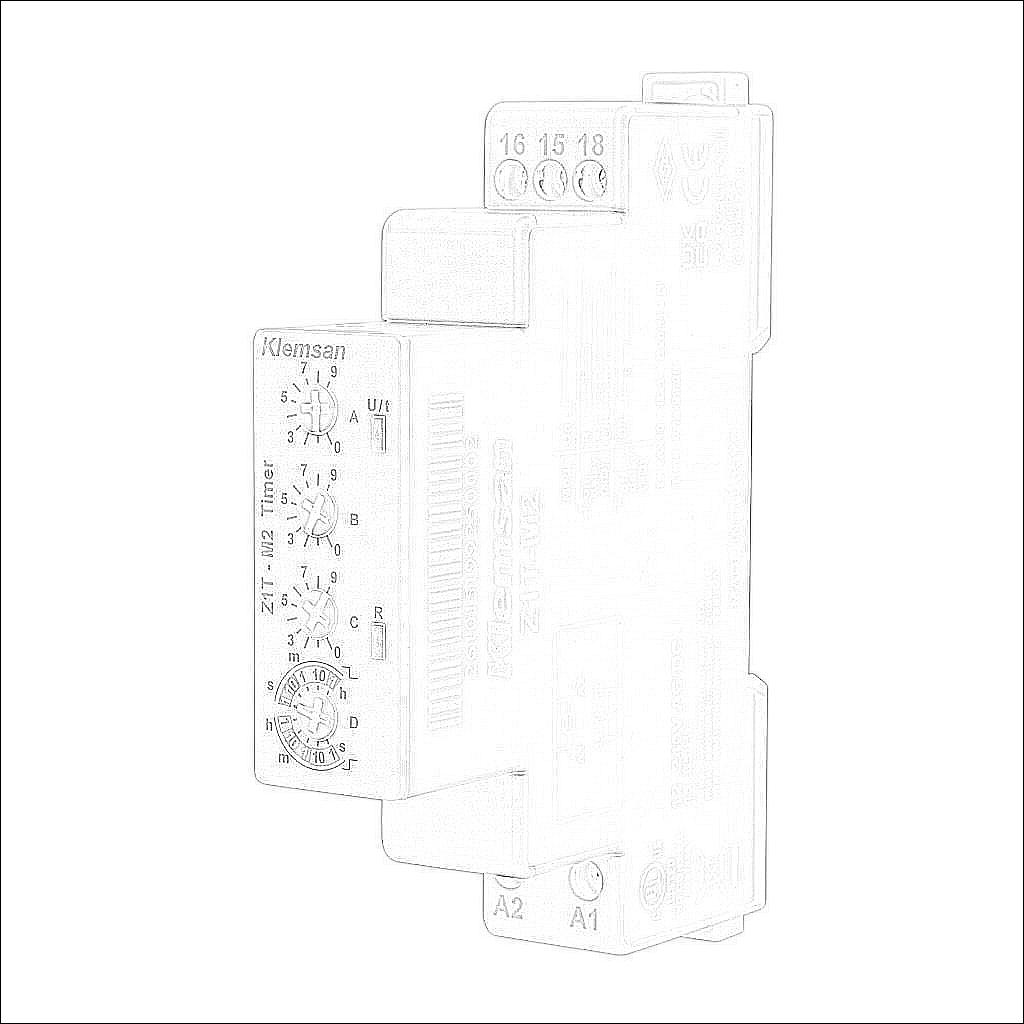

Z1T-M2

Z1T-M2

Klemsan multi-mode delay relay timer, 0.1 seconds to 99.9 hours selectable timing range, 12-240 VAC/VDC operating voltage, 10A contact rating, (1) SPDT timed relay output(s), 35mm DIN rail mount, screw terminal(s).

$29.69
/
Technical Data
BrandKlemsan
ItemRelay timer
Timer TypeMulti-mode delay
IndicatorLED
Timing Range0.1 seconds to 99.9 hours selectable
Operating Voltage12-240 VAC/VDC
Timer Output Type(s)(1) SPDT timed relay
Output Type(1) N.O., (1) N.C.
Timer Function(s)
  • on-delay
  • off-delay
Contact Rating10A
Mounting35mm DIN rail
Connector TypeScrew terminal(s)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
