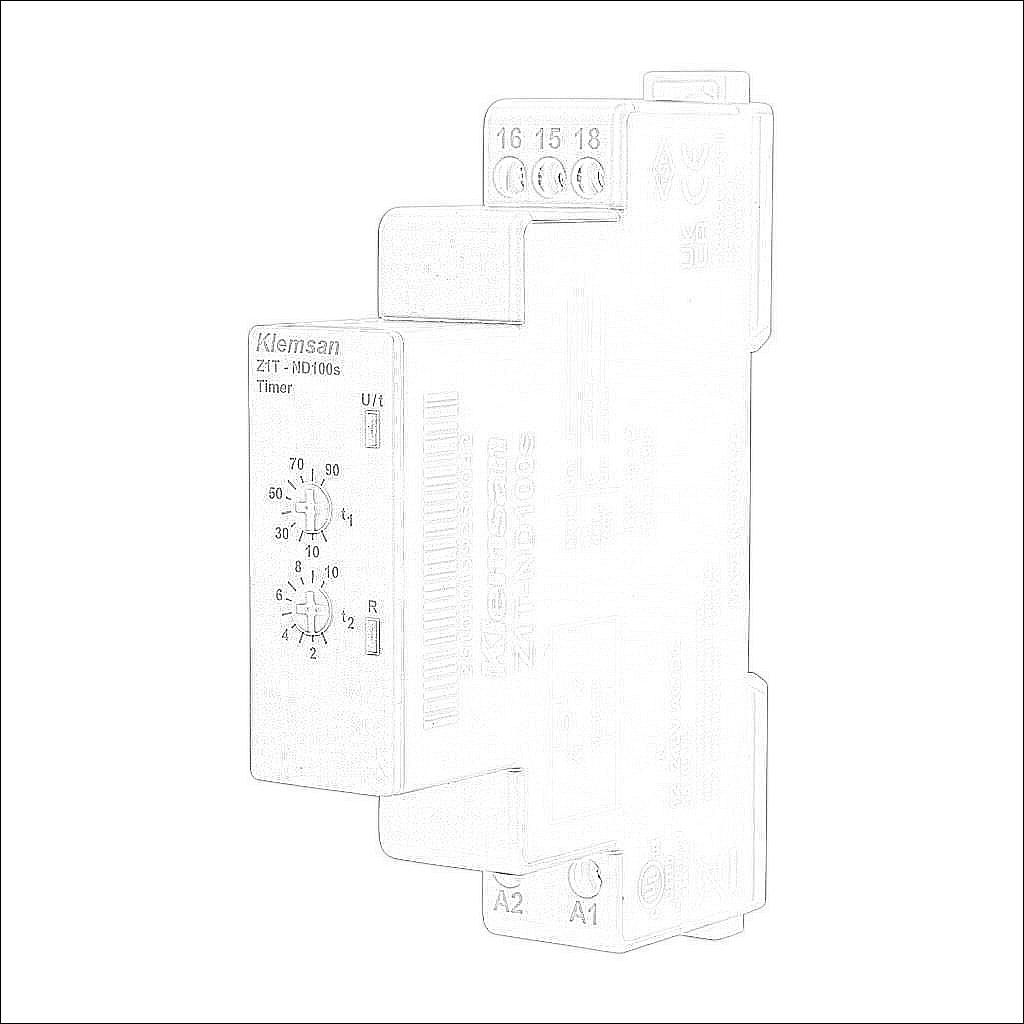

Z1T-ND100S

Z1T-ND100S

Klemsan on-delay relay timer, 1 to 100 seconds selectable timing range, 12-240 VAC/VDC operating voltage, 10A contact rating, (1) SPDT timed relay output(s), 35mm DIN rail mount, screw terminal(s).

$26.25
/
Technical Data
BrandKlemsan
ItemRelay timer
Timer TypeOn-delay
IndicatorLED
Timing Range1 to 100 seconds selectable
Operating Voltage12-240 VAC/VDC
Timer Output Type(s)(1) SPDT timed relay
Output Type(1) N.O., (1) N.C.
Timer Function(s)
  • on-delay
Contact Rating10A
Mounting35mm DIN rail
Connector TypeScrew terminal(s)
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
