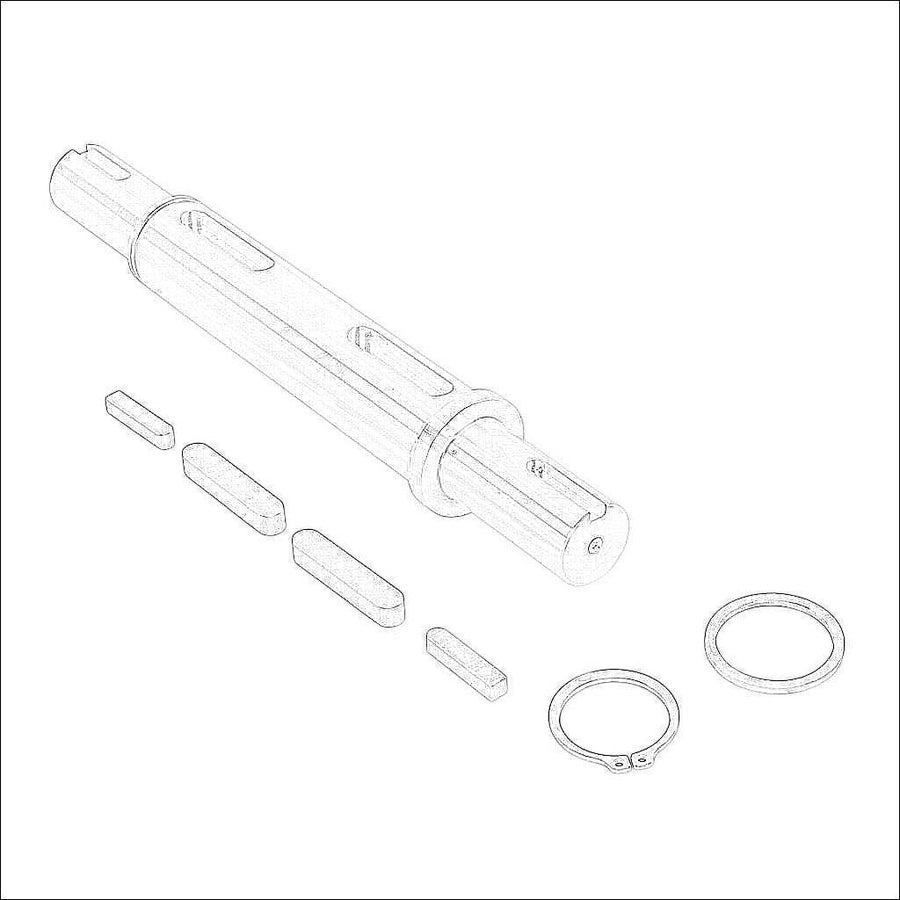

WGSS-237-DS
IronHorse gearbox double output shaft, 1.125in. For use with WGSS-237 series gearboxes. (4) keys, (1) retaining ring and (1) C-clip included.
$193.75

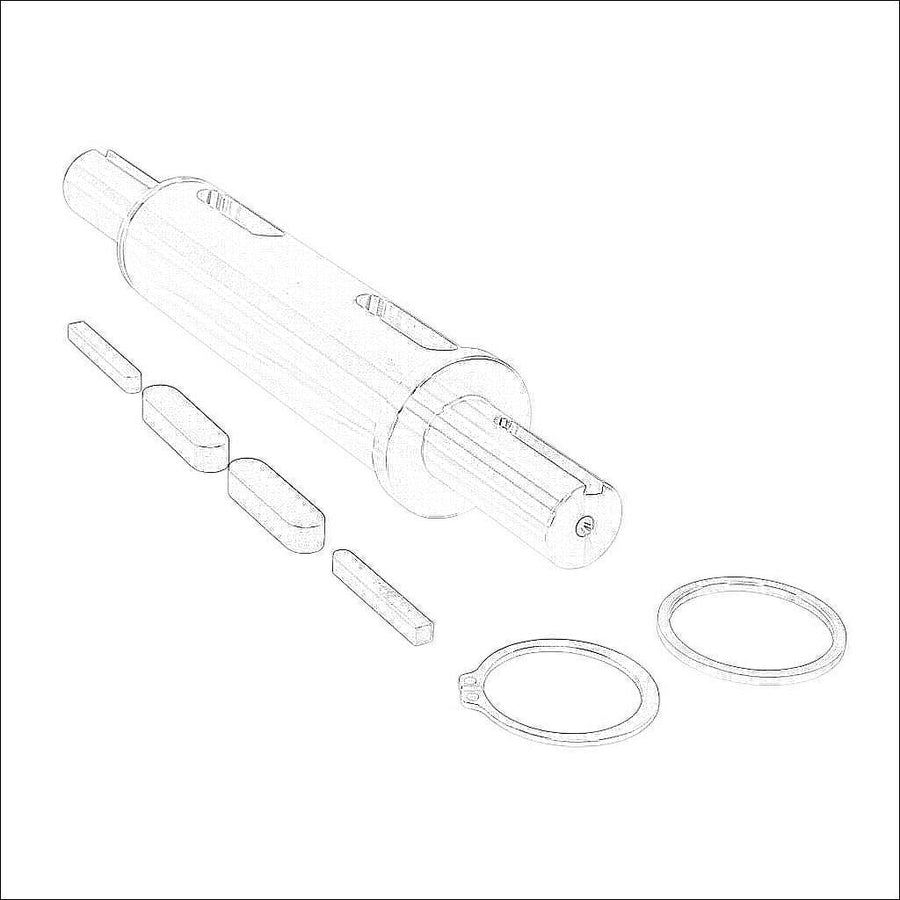

WGSS-262-DS-1125
IronHorse gearbox double output shaft, 1.125in. For use with WGSS-262 series gearboxes. (4) keys, (1) retaining ring and (1) C-clip included.
$212.50

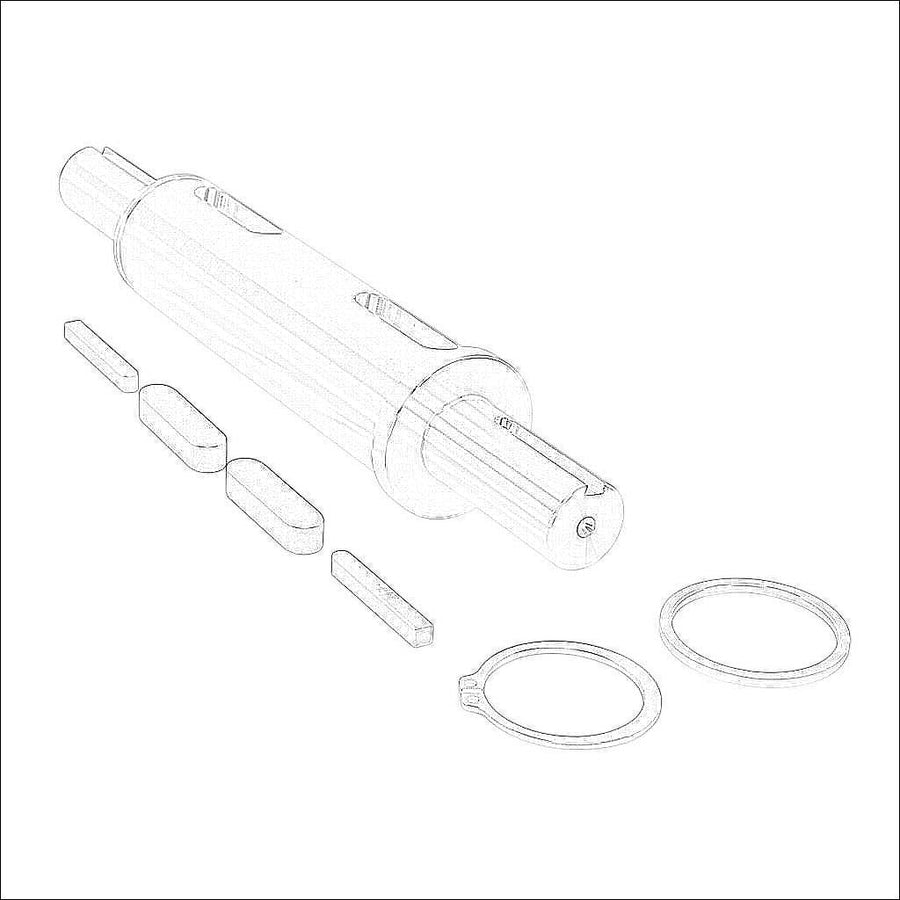

WGSS-262-DS
IronHorse gearbox double output shaft, 1.25in. For use with WGSS-262 series gearboxes. (4) keys, (1) retaining ring and (1) C-clip included.
$212.50

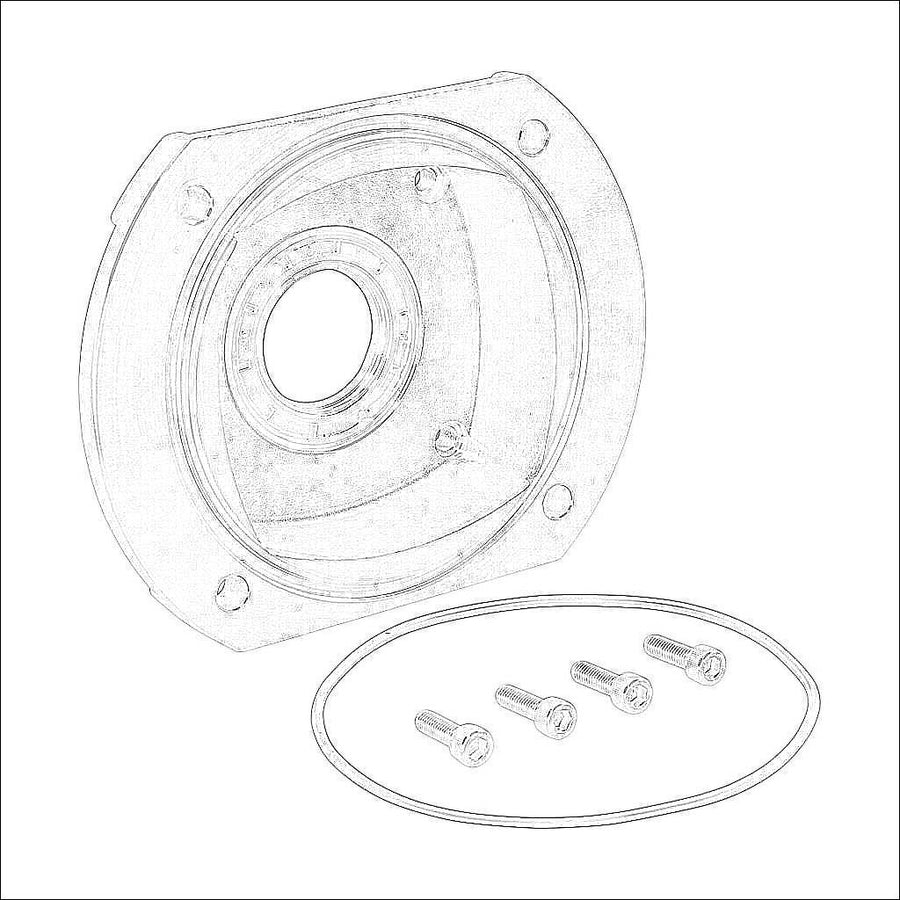

WGSS-175-OF
IronHorse output flange, for use with WGSS-175 series gearboxes. Mounting hardware included.
$256.25

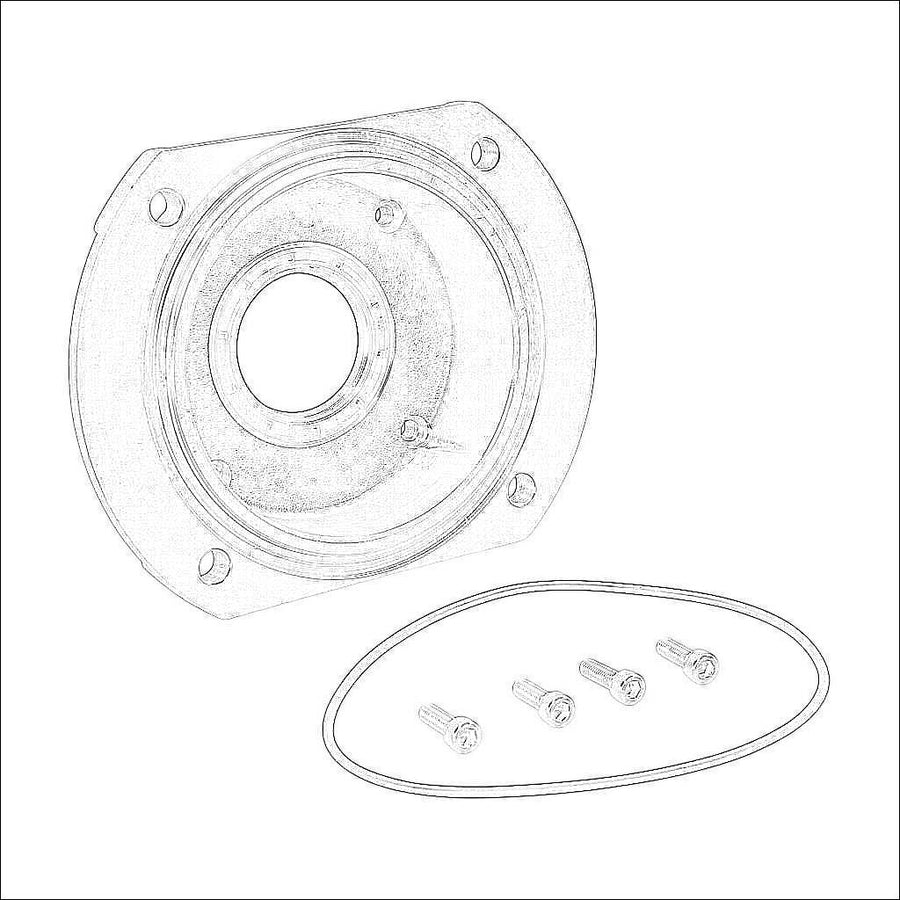

WGSS-206-OF
IronHorse output flange, for use with WGSS-206 series gearboxes. Mounting hardware included.
$363.75

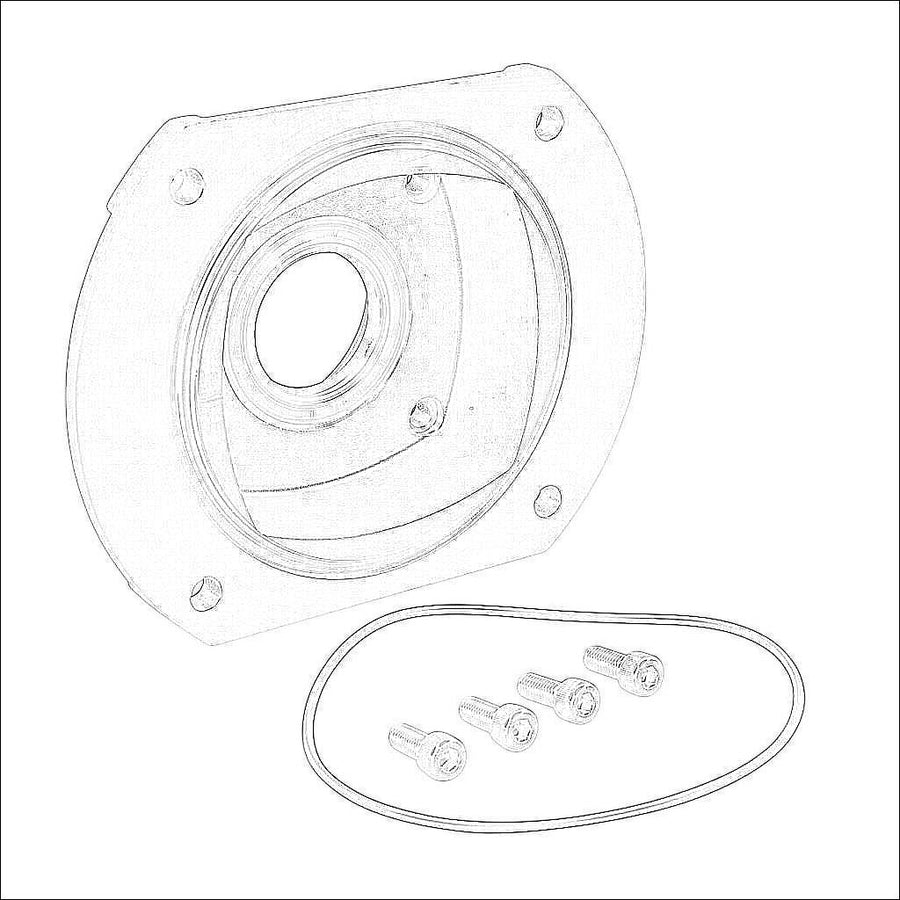

WGSS-237-OF
IronHorse output flange, for use with WGSS-237 series gearboxes. Mounting hardware included.
$412.50

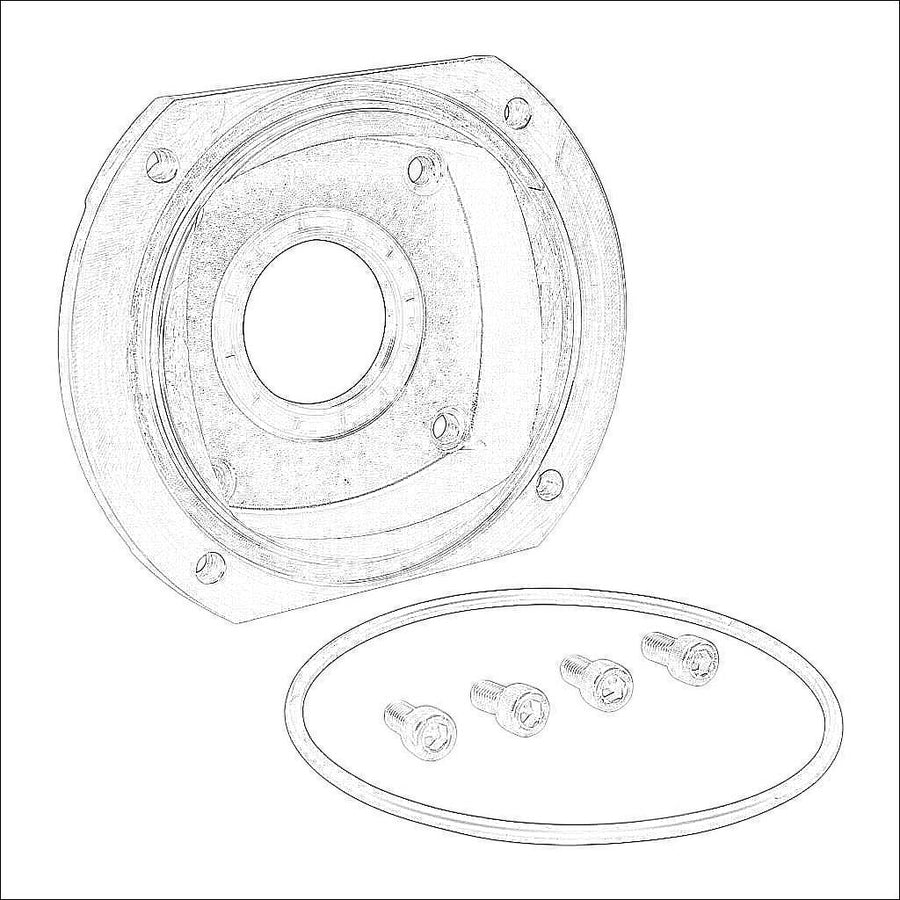

WGSS-262-OF
IronHorse output flange, for use with WGSS-262 series gearboxes. Mounting hardware included.
$462.50

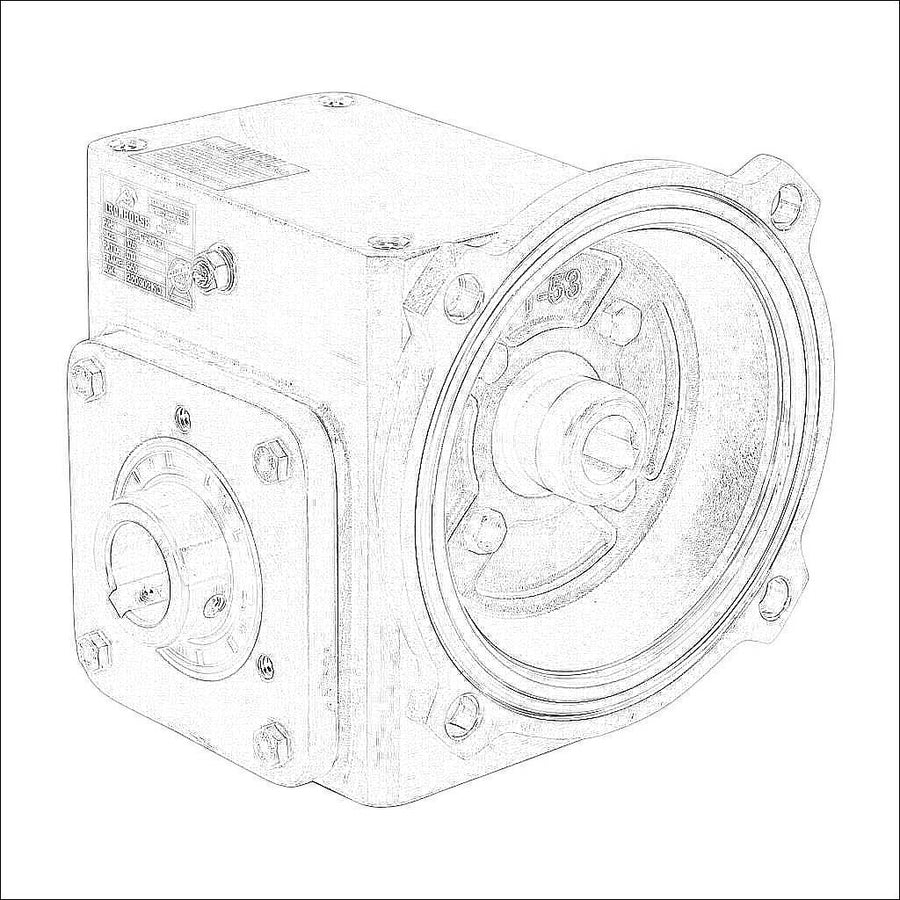

WGSS-175-010-HA
IronHorse heavy duty worm gearbox, 10:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 1.52hp at 1.0 SF, 495 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

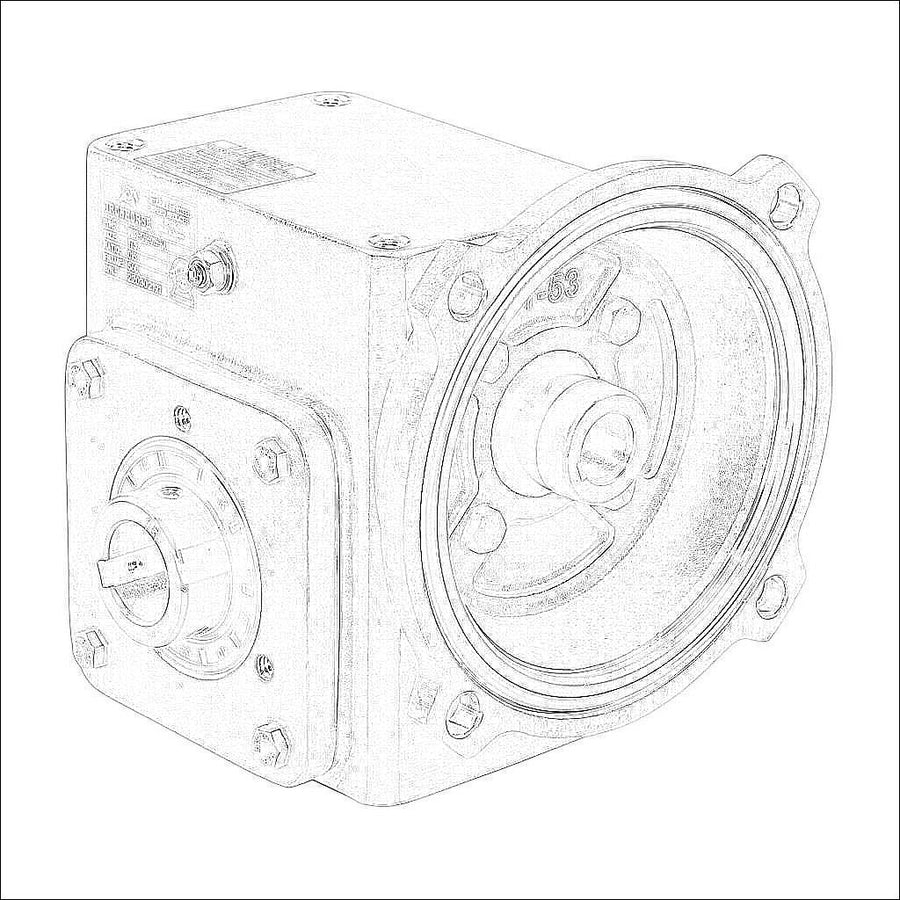

WGSS-175-015-HA
IronHorse heavy duty worm gearbox, 15:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 1.09hp at 1.0 SF, 506 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

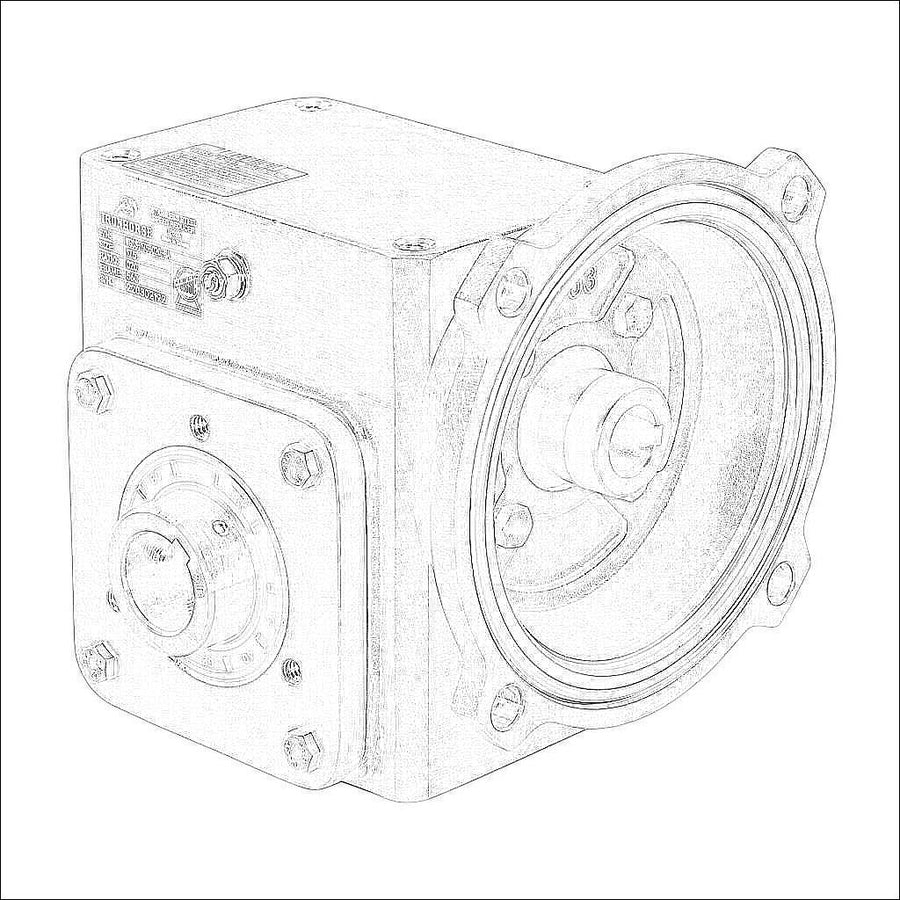

WGSS-175-020-HA
IronHorse heavy duty worm gearbox, 20:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.85hp at 1.0 SF, 527 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

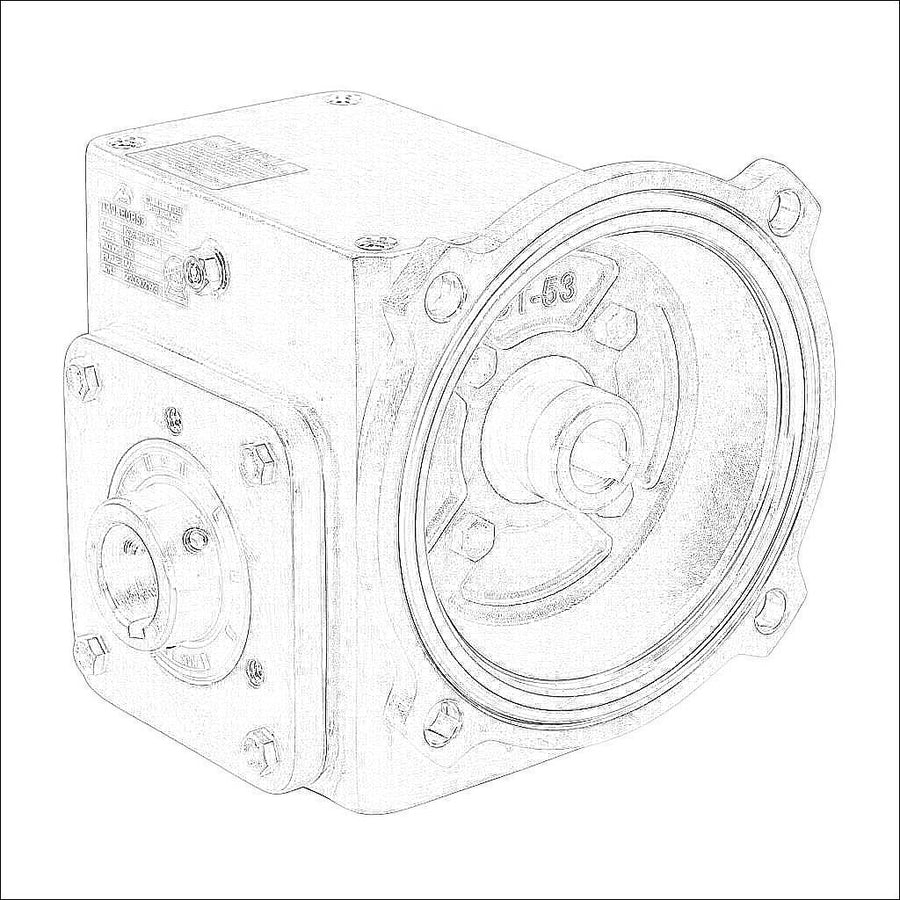

WGSS-175-030-HA
IronHorse heavy duty worm gearbox, 30:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.65hp at 1.0 SF, 532 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

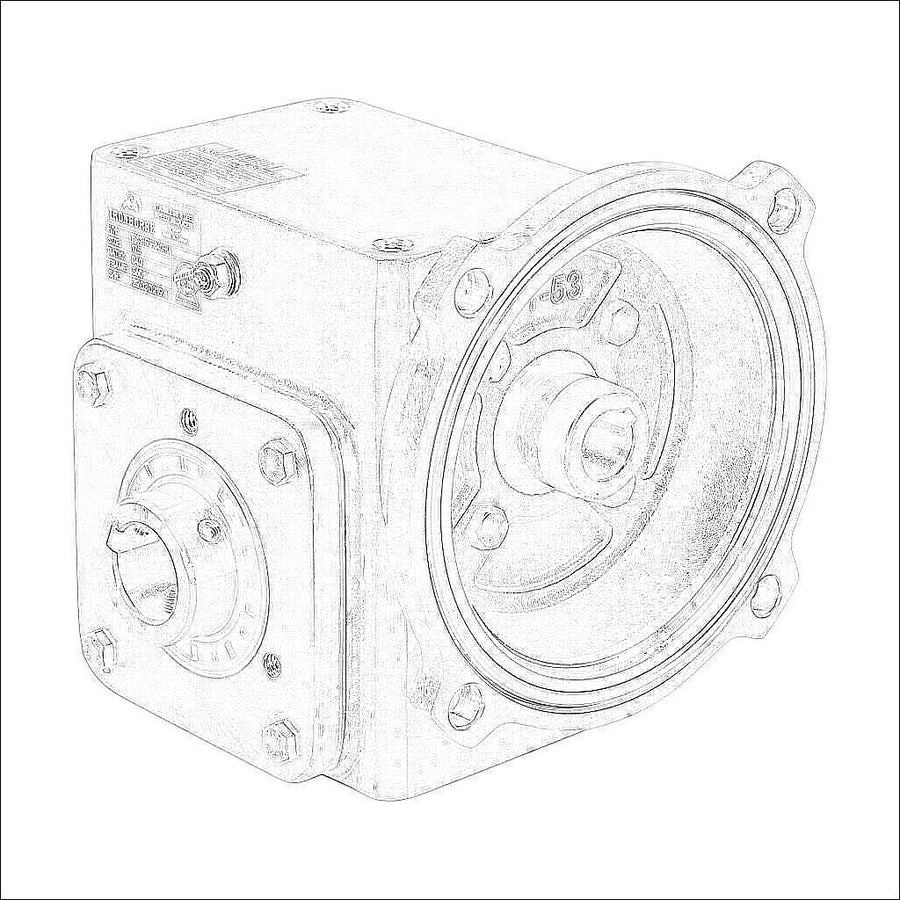

WGSS-175-040-HA
IronHorse heavy duty worm gearbox, 40:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.57hp at 1.0 SF, 599 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

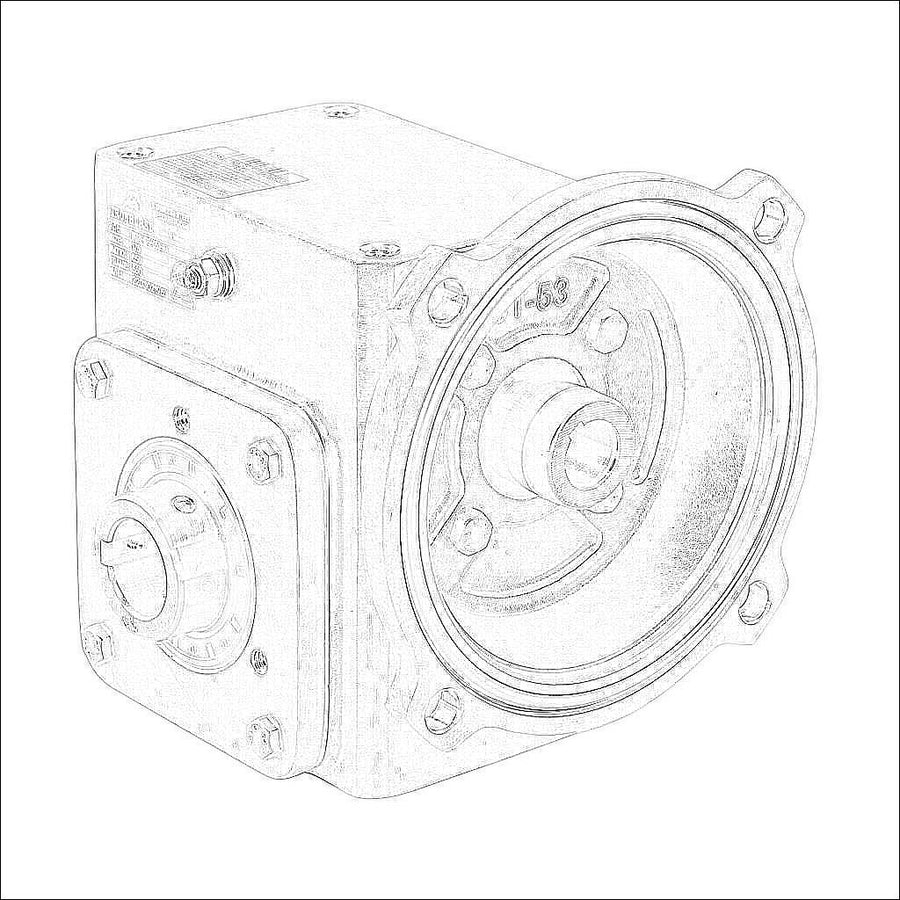

WGSS-175-050-HA
IronHorse heavy duty worm gearbox, 50:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.44hp at 1.0 SF, 568 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

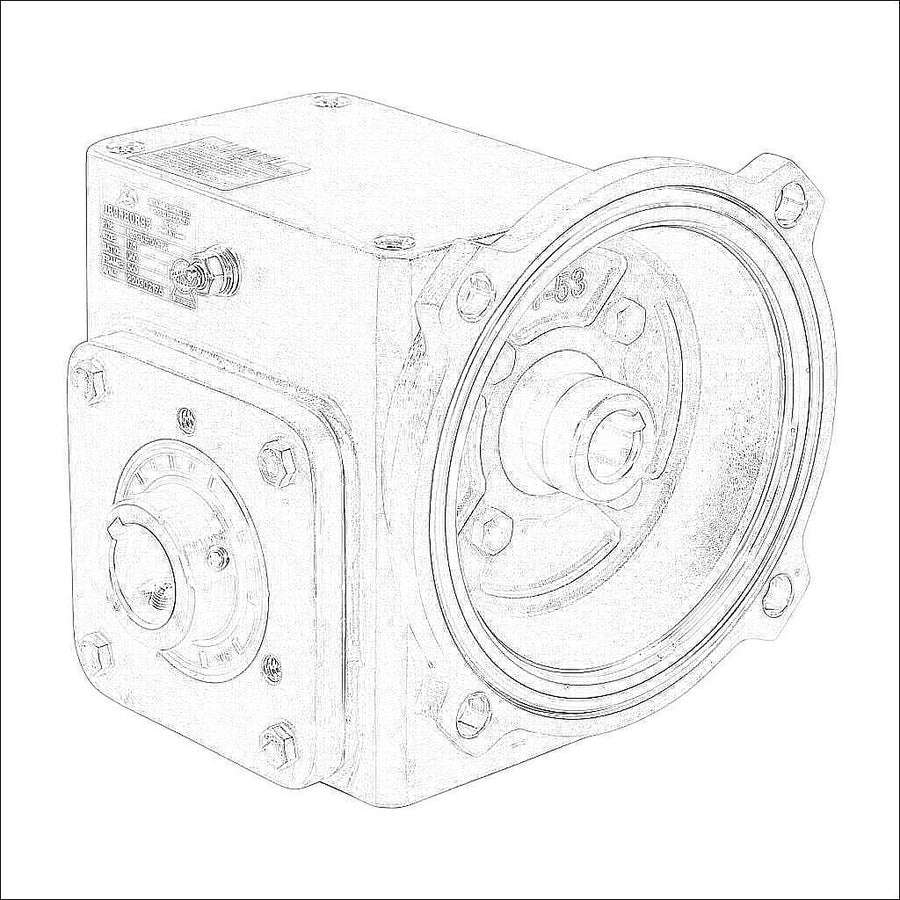

WGSS-175-060-HA
IronHorse heavy duty worm gearbox, 60:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.31hp at 1.0 SF, 457 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,470

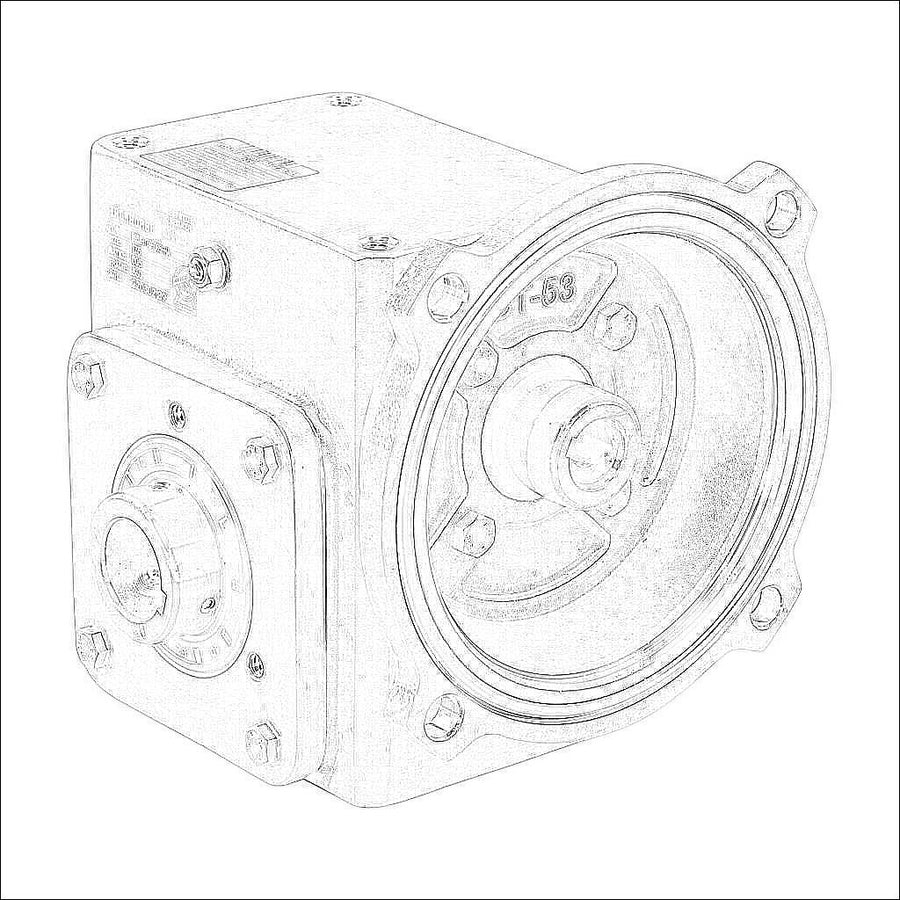

WGSS-175-005-HA
IronHorse heavy duty worm gearbox, 5:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 2.36hp at 1.0 SF, 416 lb-in mechanical output torque, 1-3/4in center distance, 304 stainless steel housing, top and bottom mount.
$1,575

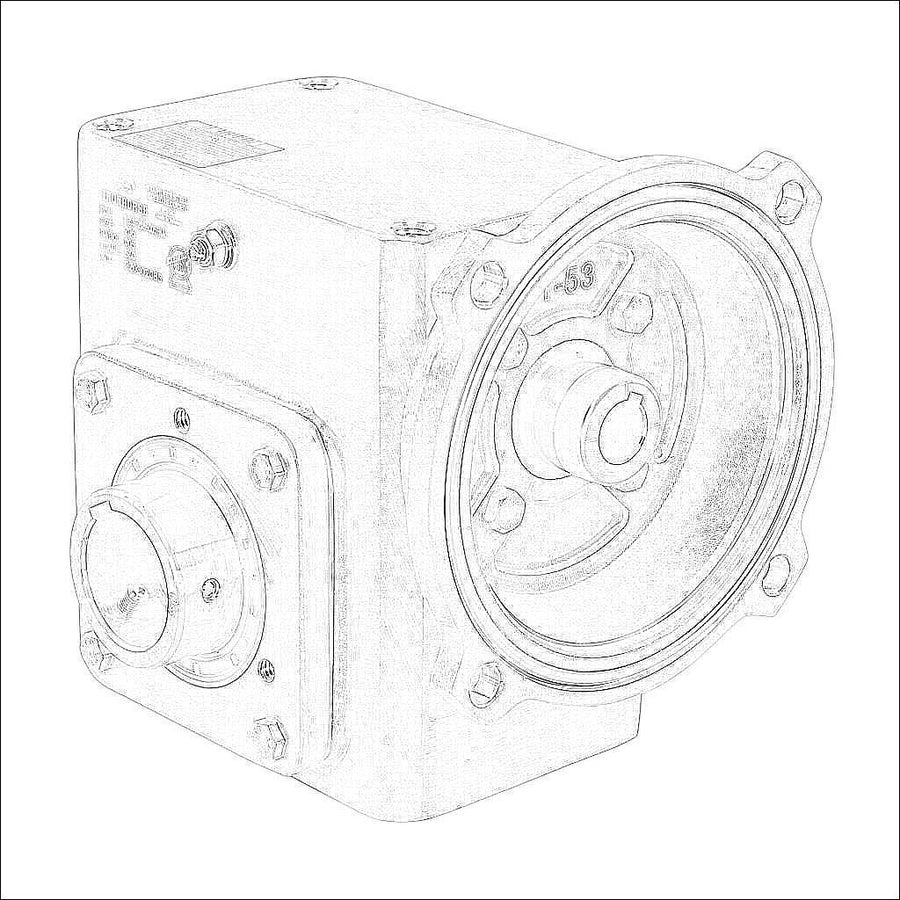

WGSS-206-005-HA
IronHorse heavy duty worm gearbox, 5:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 3.62hp at 1.0 SF, 640 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

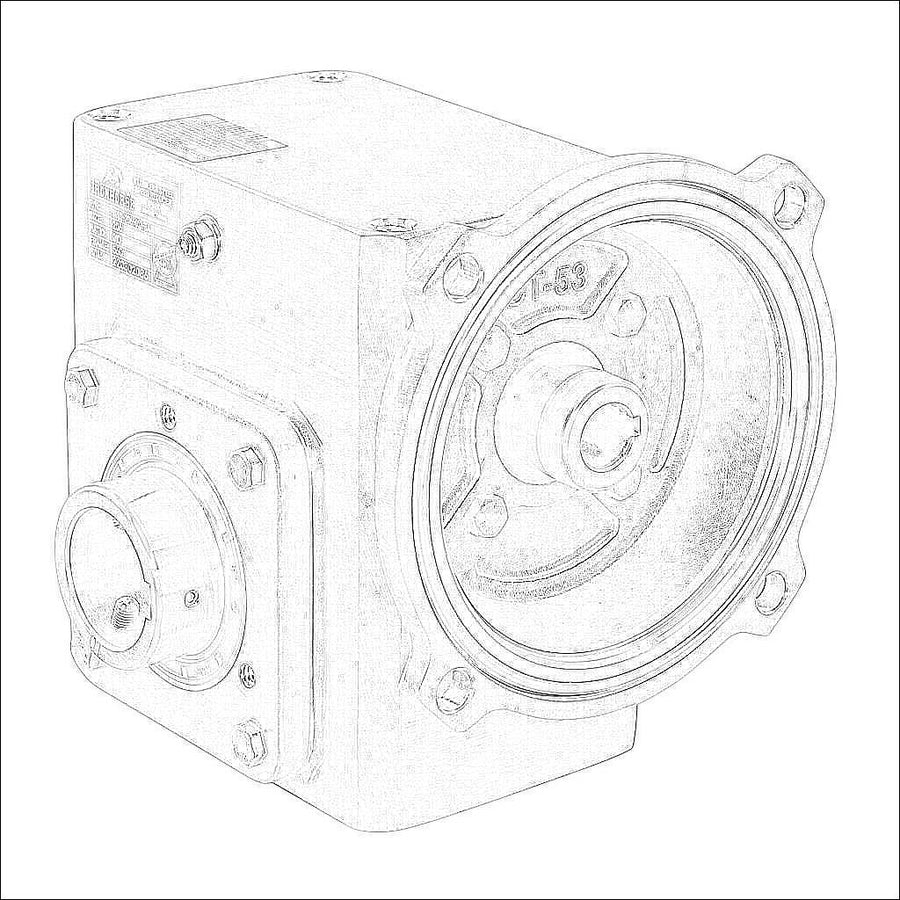

WGSS-206-010-HA
IronHorse heavy duty worm gearbox, 10:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 2.47hp at 1.0 SF, 799 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

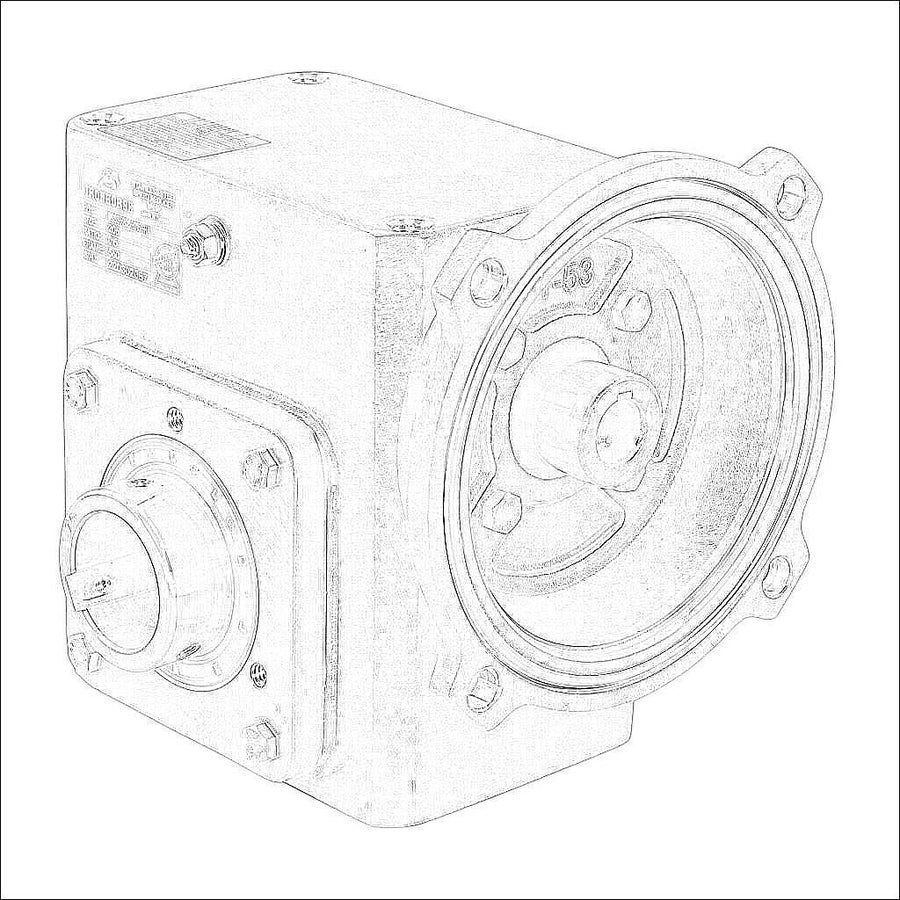

WGSS-206-015-HA
IronHorse heavy duty worm gearbox, 15:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 1.8hp at 1.0 SF, 850 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

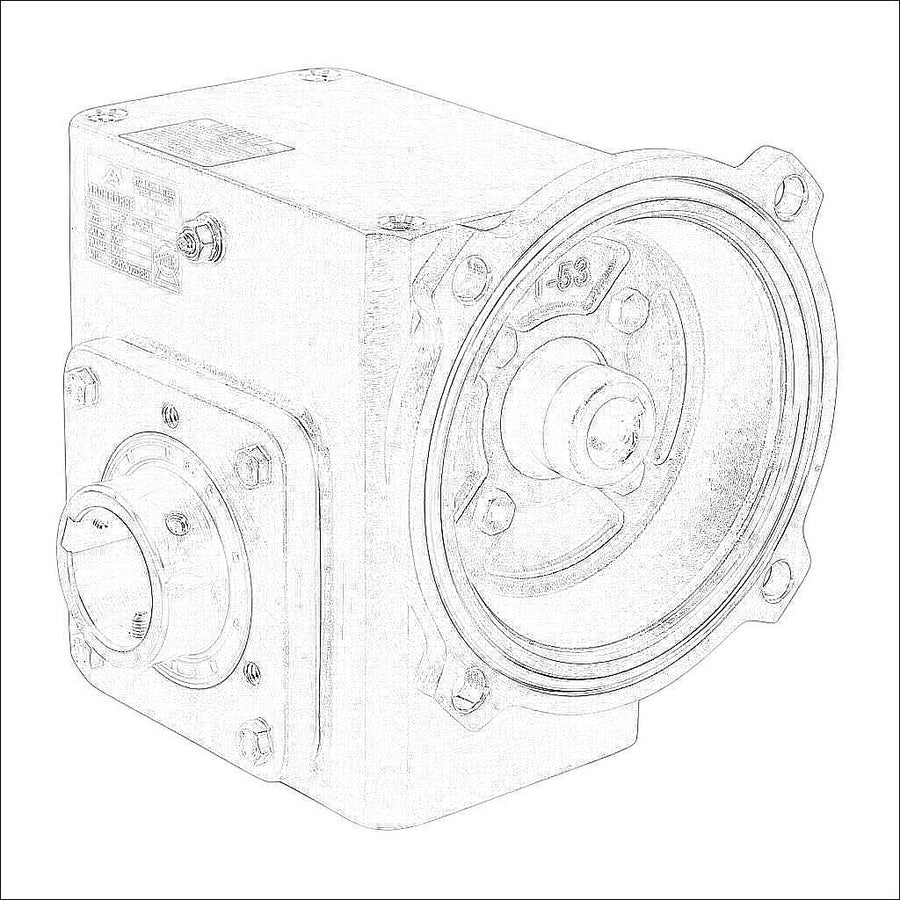

WGSS-206-020-HA
IronHorse heavy duty worm gearbox, 20:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 1.48hp at 1.0 SF, 907 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

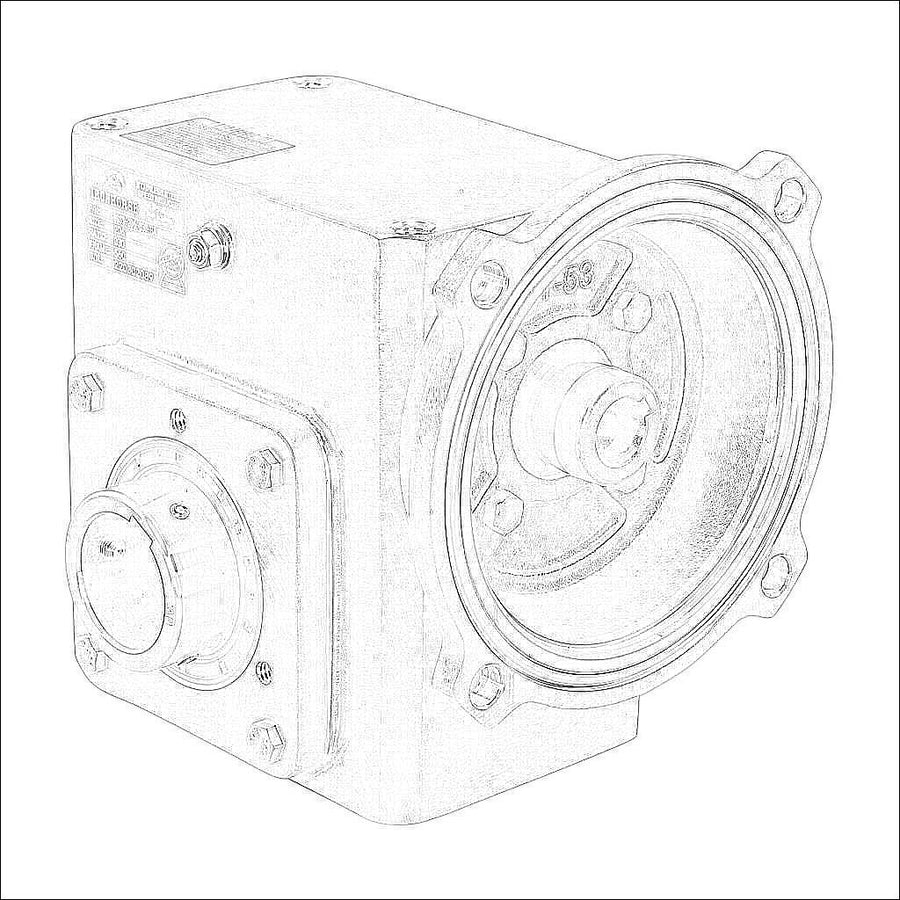

WGSS-206-030-HA
IronHorse heavy duty worm gearbox, 30:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 0.95hp at 1.0 SF, 802 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

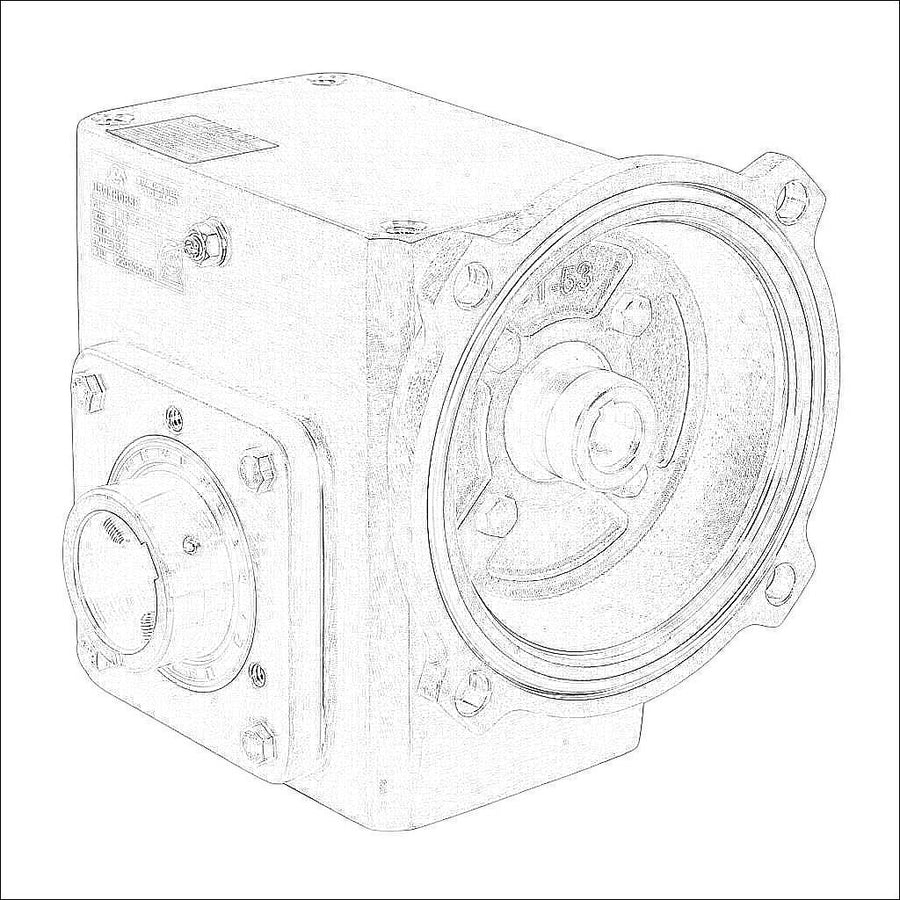

WGSS-206-040-HA
IronHorse heavy duty worm gearbox, 40:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 0.76hp at 1.0 SF, 774 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

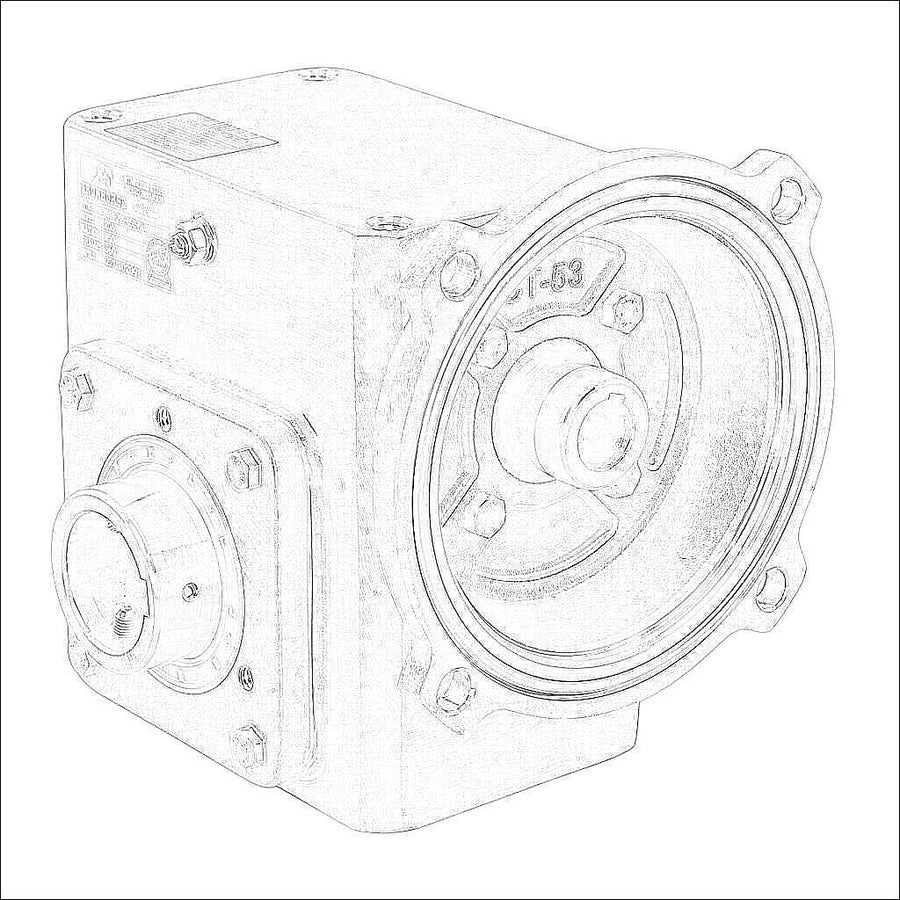

WGSS-206-050-HA
IronHorse heavy duty worm gearbox, 50:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 0.6hp at 1.0 SF, 771 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

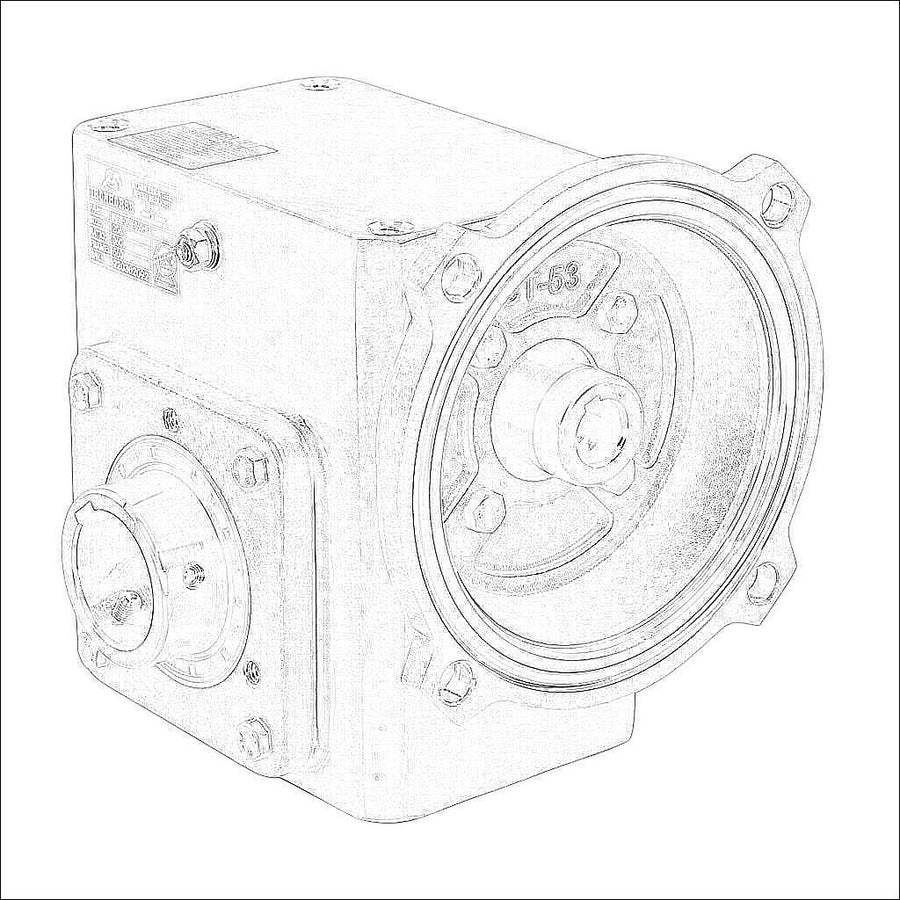

WGSS-206-060-HA
IronHorse heavy duty worm gearbox, 60:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 0.52hp at 1.0 SF, 777 lb-in mechanical output torque, 2-1/16in center distance, 304 stainless steel housing, top and bottom mount.
$1,610

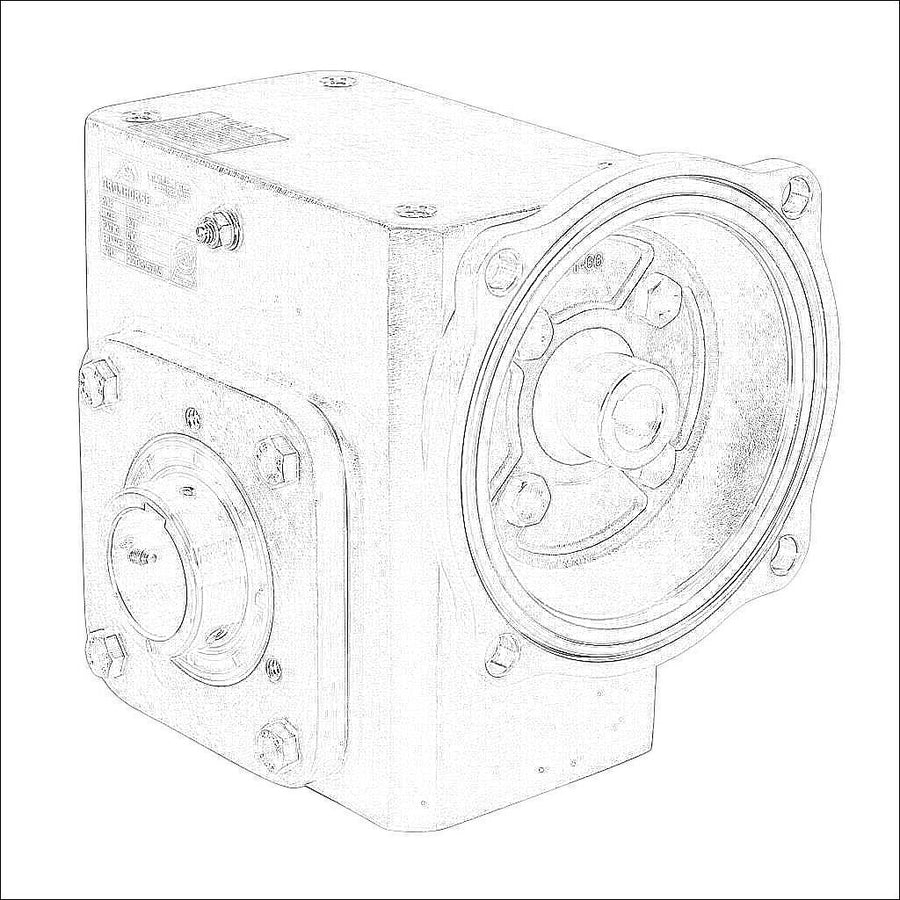

WGSS-237-010-HA
IronHorse heavy duty worm gearbox, 10:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 3.23hp at 1.0 SF, 1055 lb-in mechanical output torque, 2-3/8in center distance, 304 stainless steel housing, top and bottom mount.
$1,958.60

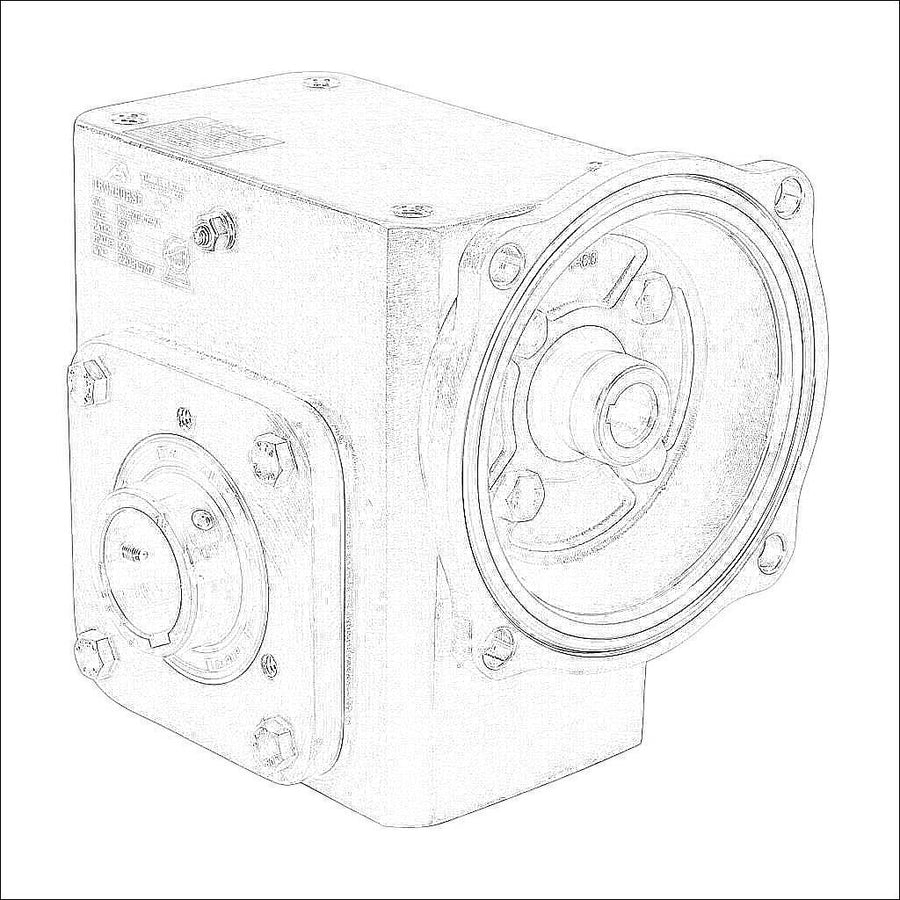

WGSS-237-015-HA
IronHorse heavy duty worm gearbox, 15:1 ratio, NEMA 56C input, hollow, 1.4375in diameter output shaft, nominal 2.36hp at 1.0 SF, 1108 lb-in mechanical output torque, 2-3/8in center distance, 304 stainless steel housing, top and bottom mount.
$1,958.60
